Measured, not assumed
We record the real wall before anything is drawn, so panels are made for the building you have.
Complex façades.Precisely resolved.
Field measurement, shop drawings, CNC machining and installation for ACM and metal façades.
See the project
A real project
Open it. Every piece is known before it is cut.
Loading model
ACM sheetPerforated sheetFiller stripAluminum structureExisting building
Drag to orbit · scroll to zoom · hover a piece · click to open it
1 / 4
Installation plan
Every piece has a name and a place
Each piece carries the same name here as in the 3D model, so nobody is guessing where a panel goes. Click any piece to open it in 3D.
The project

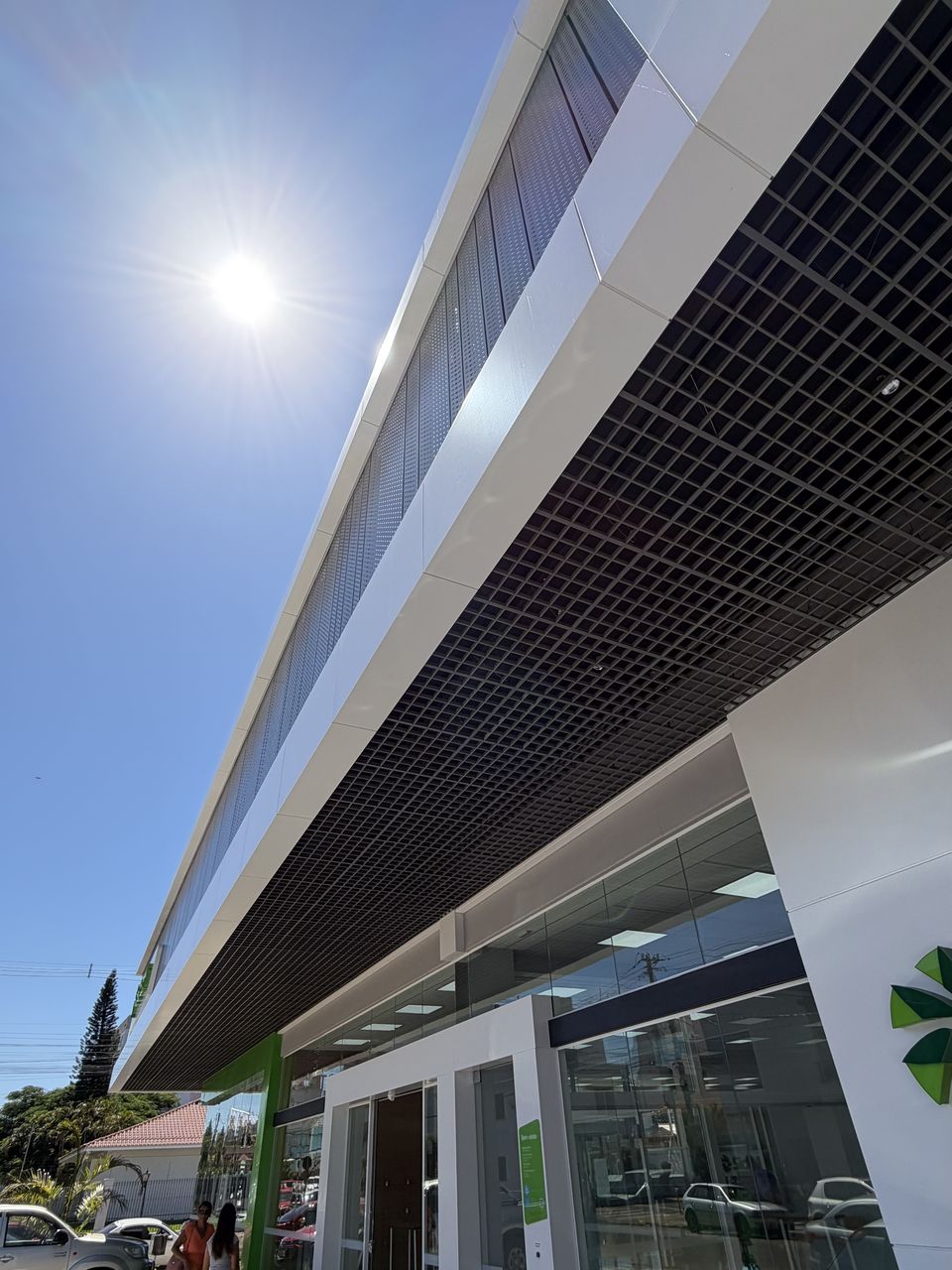

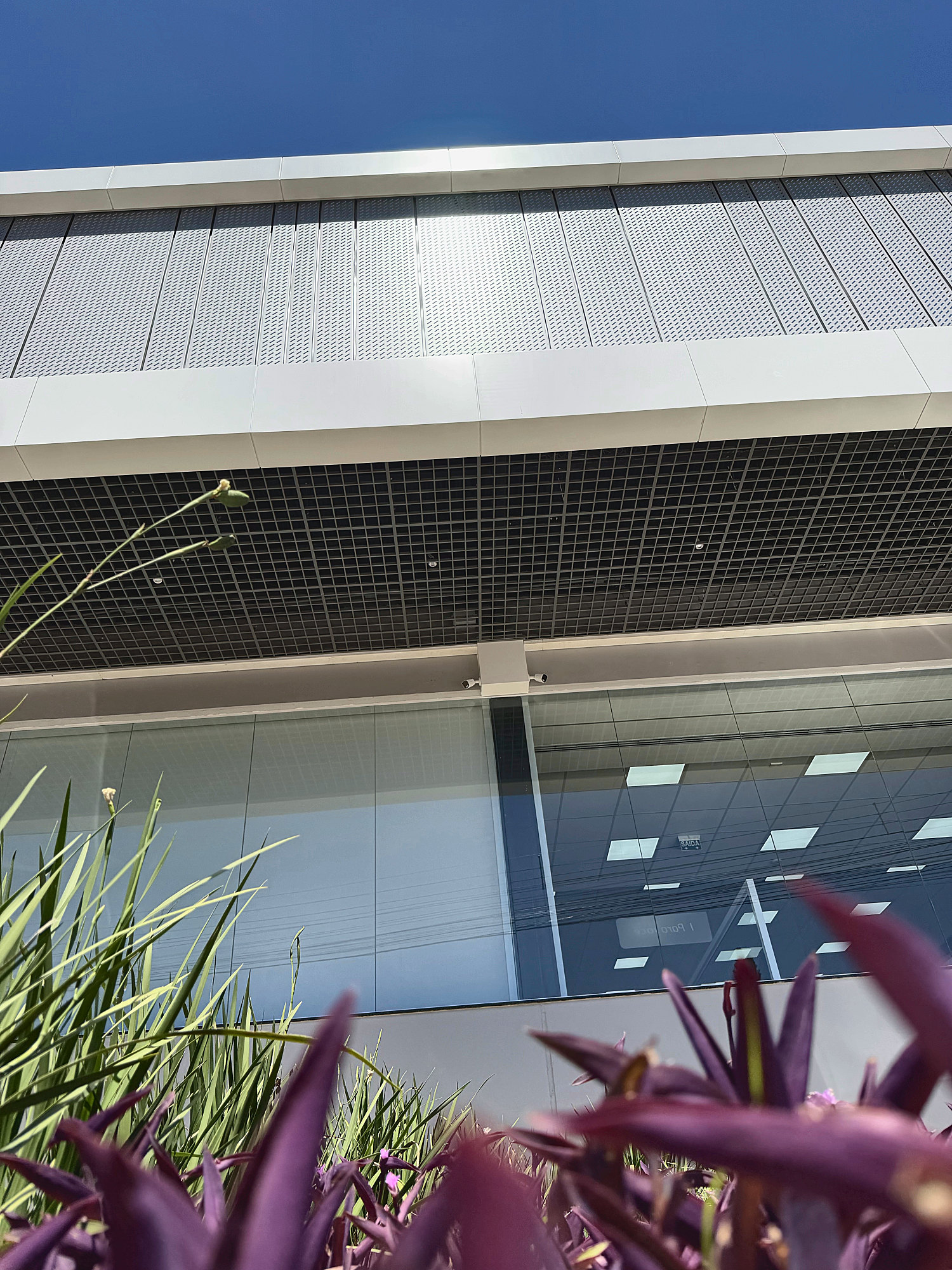

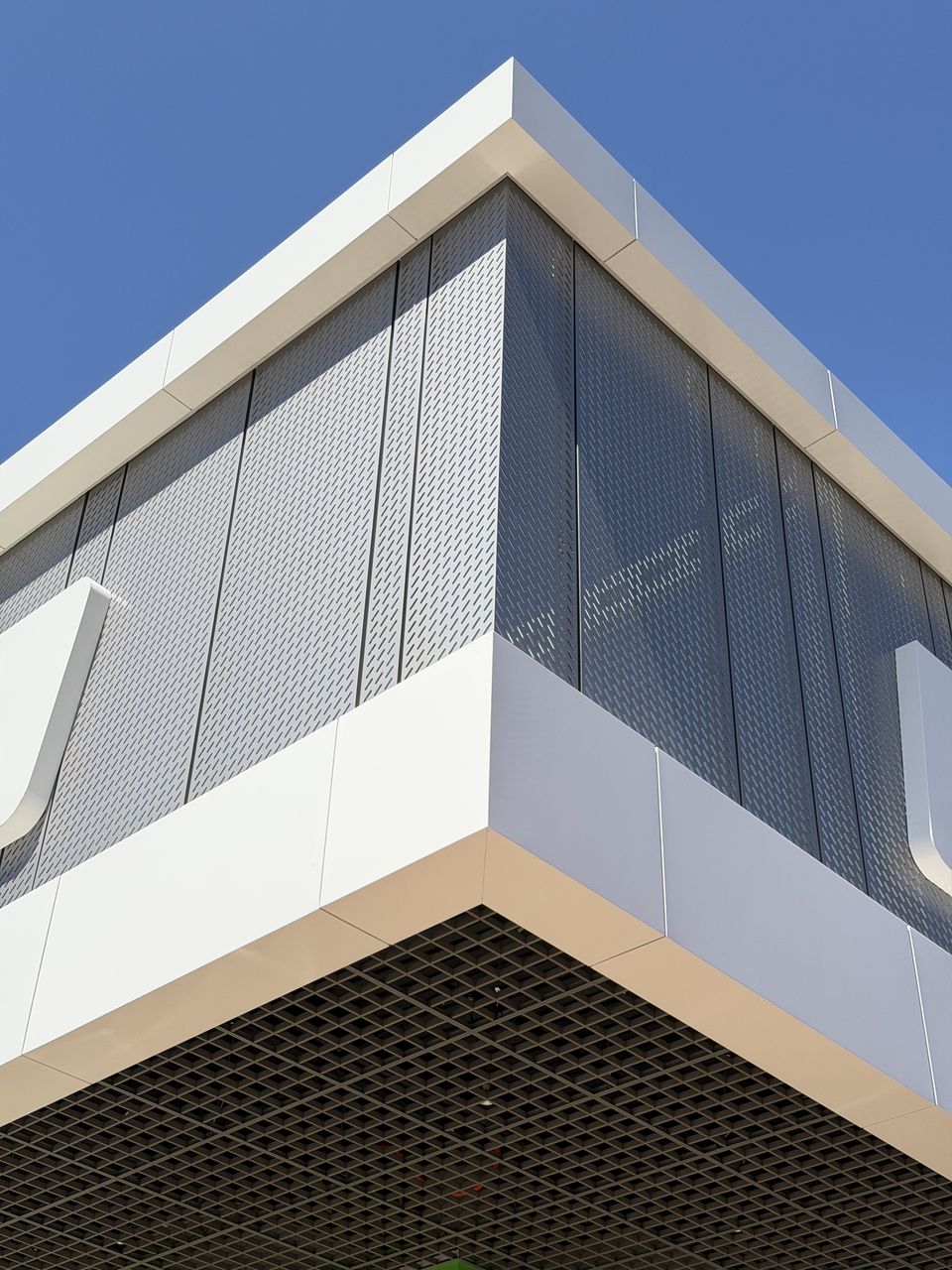

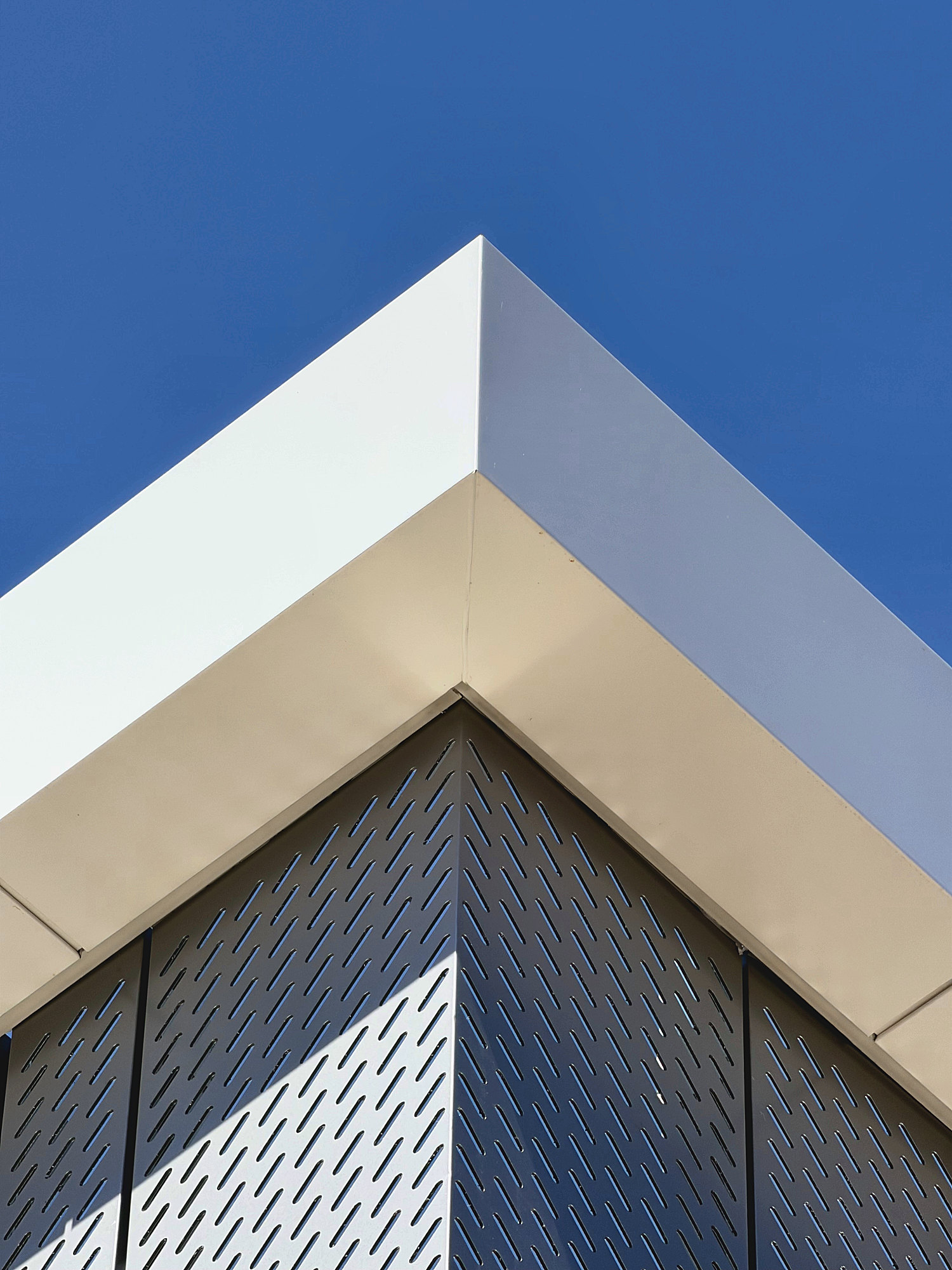

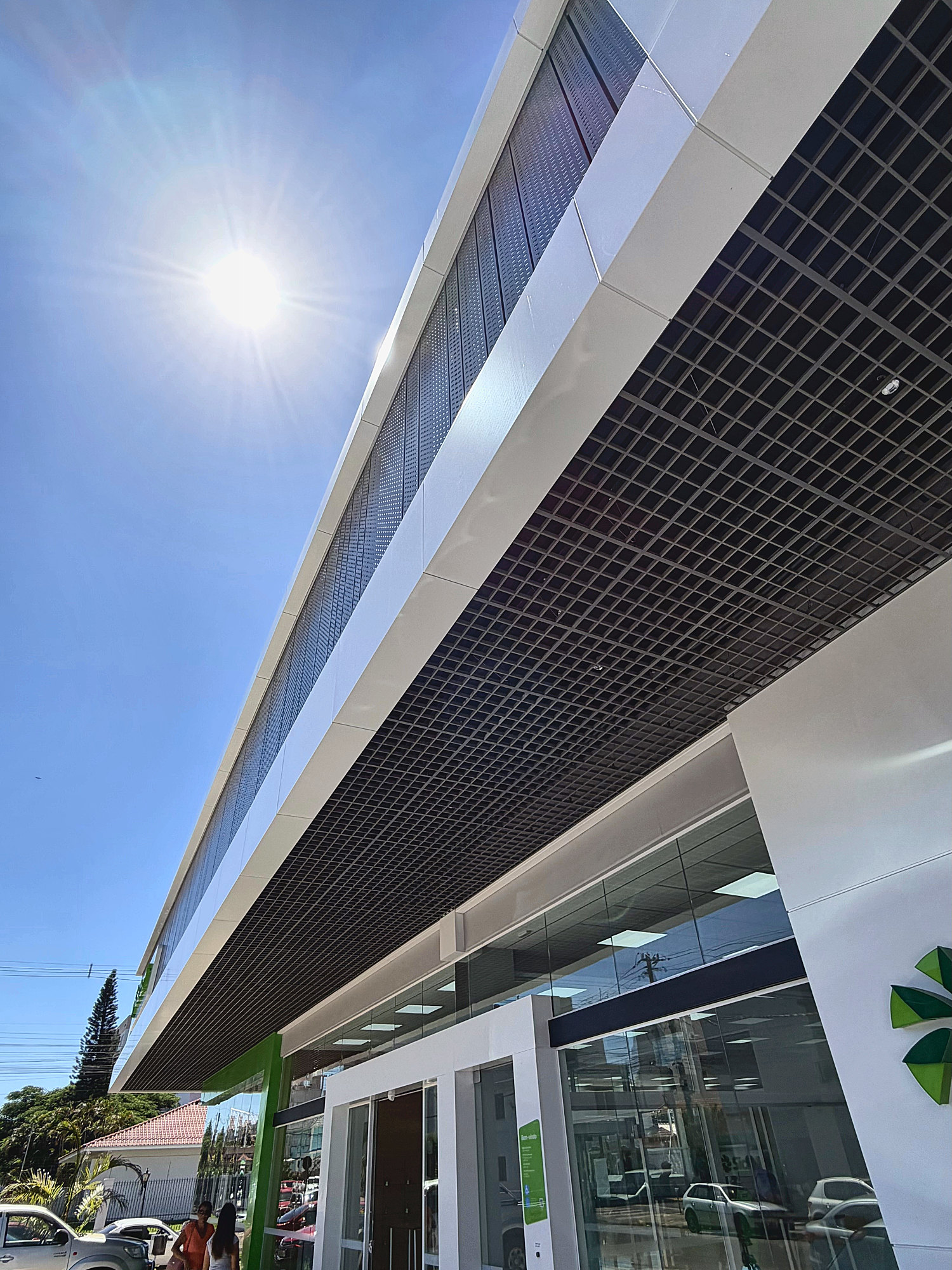

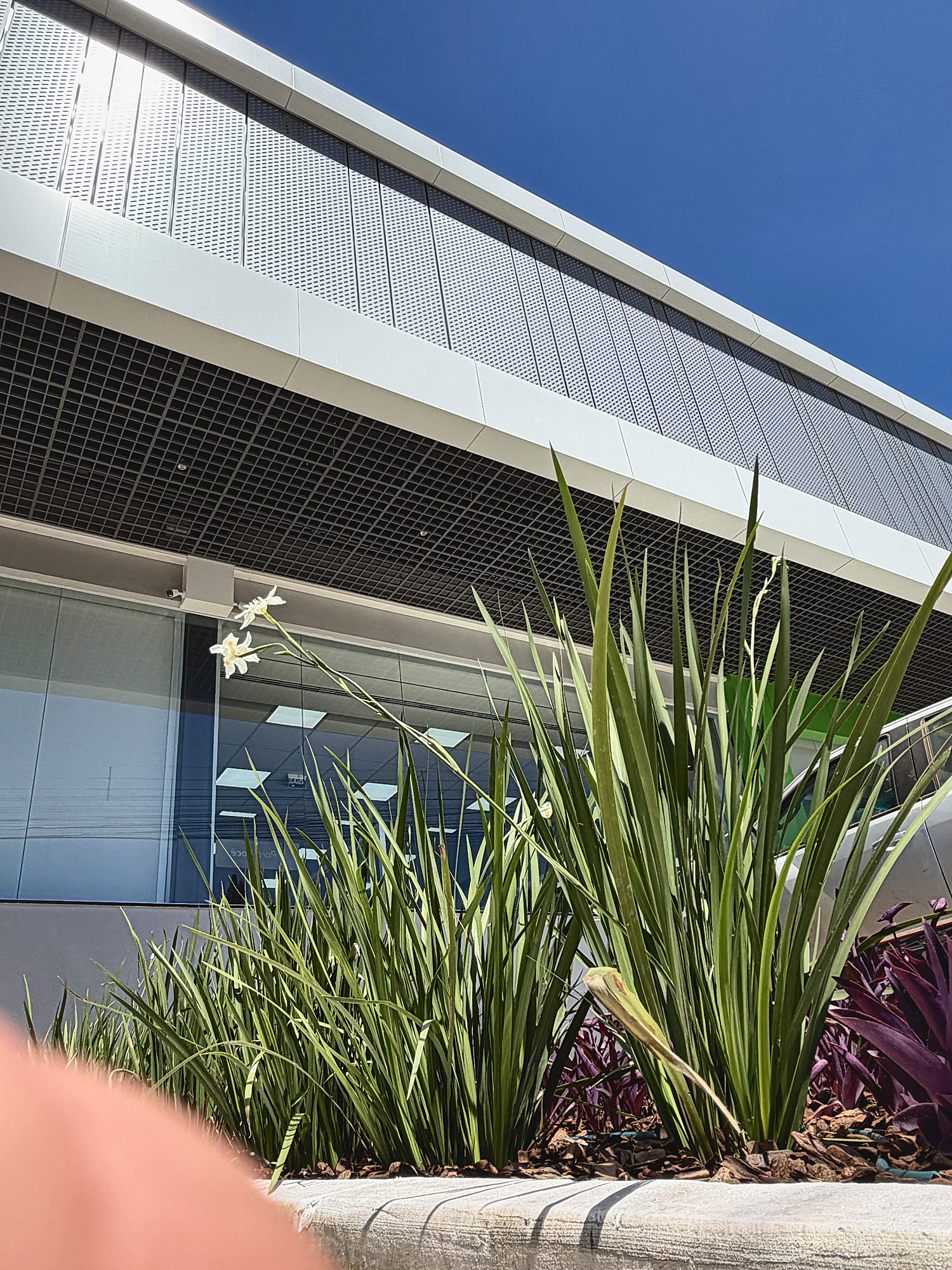

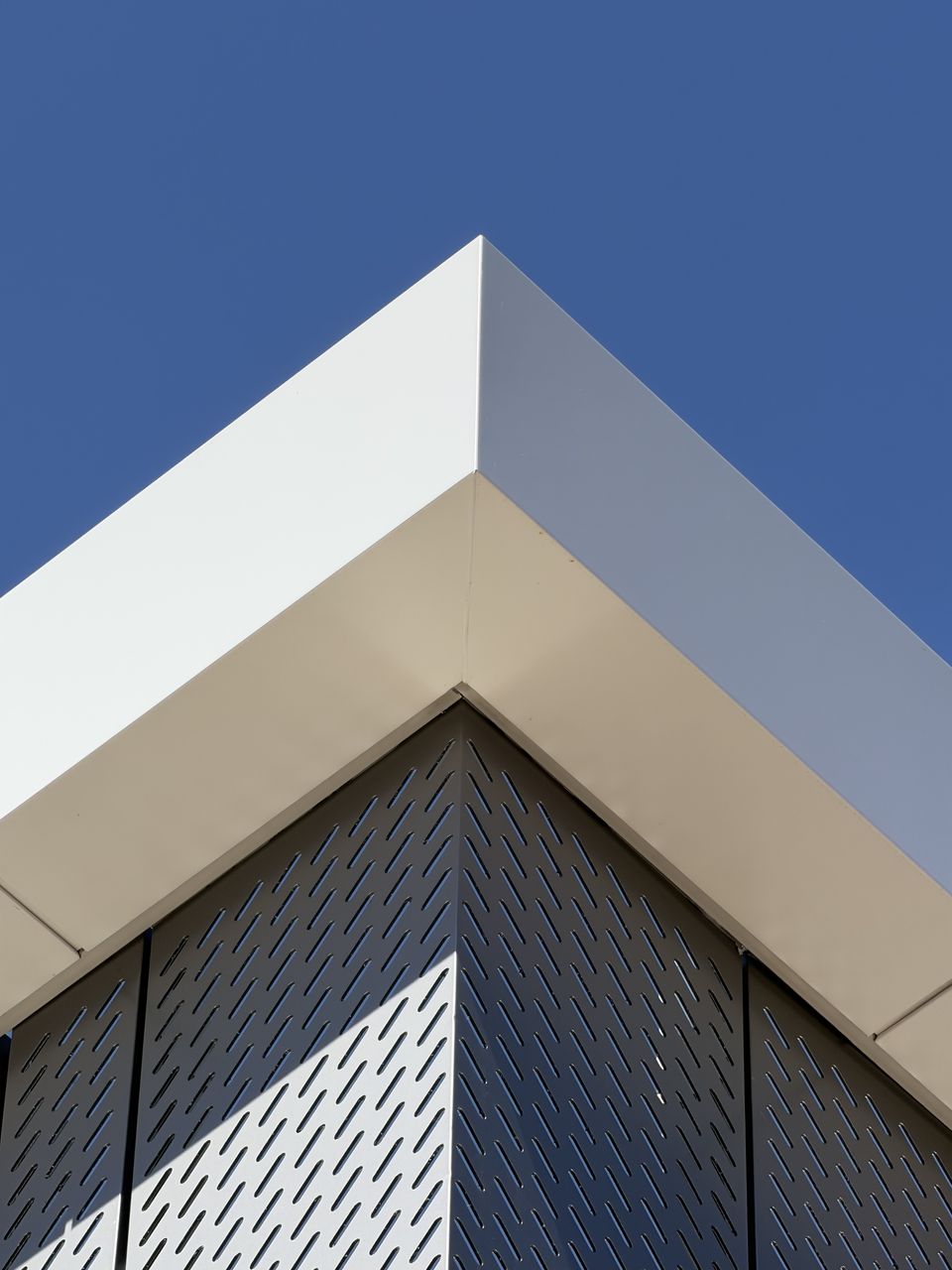

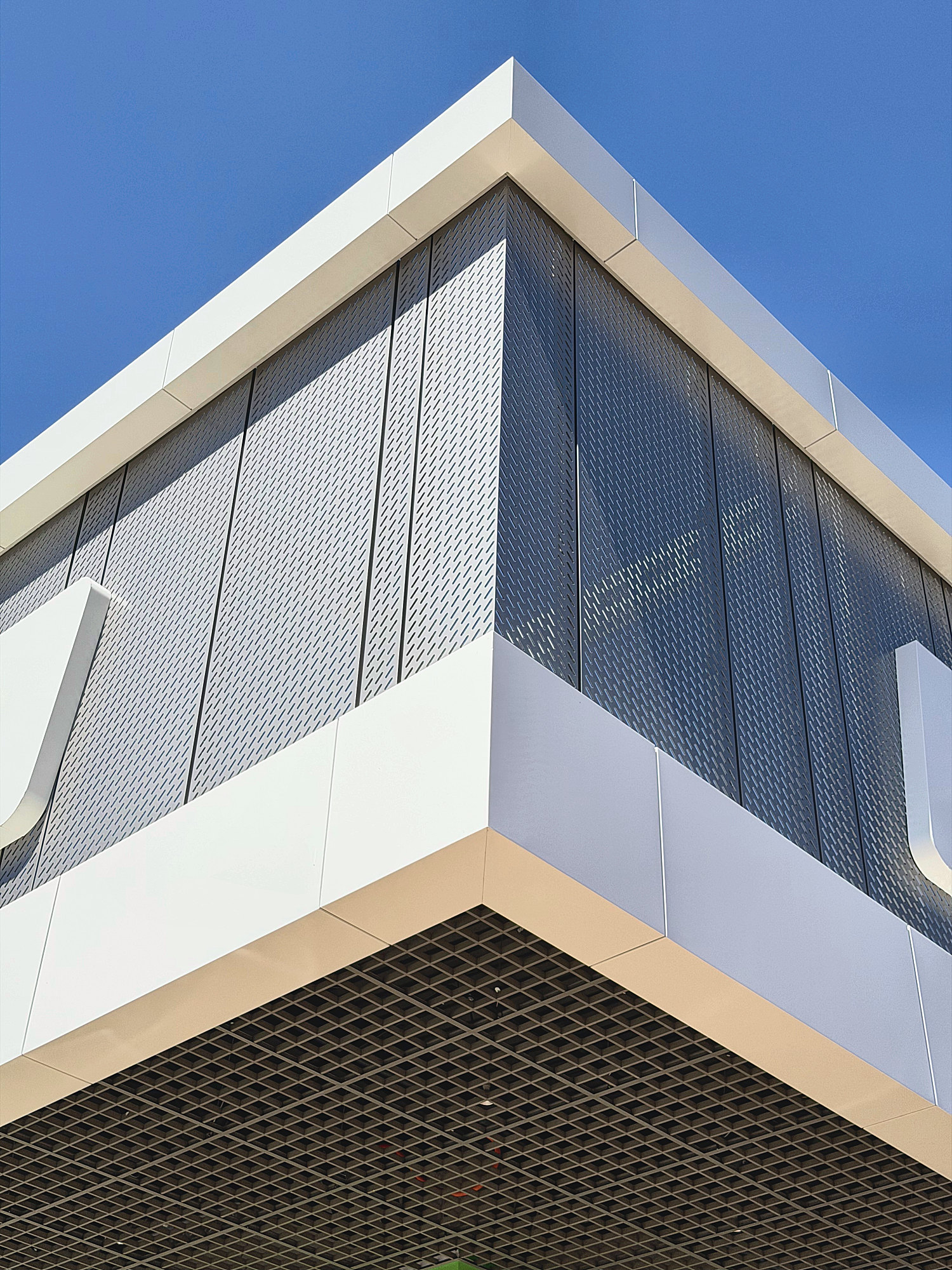

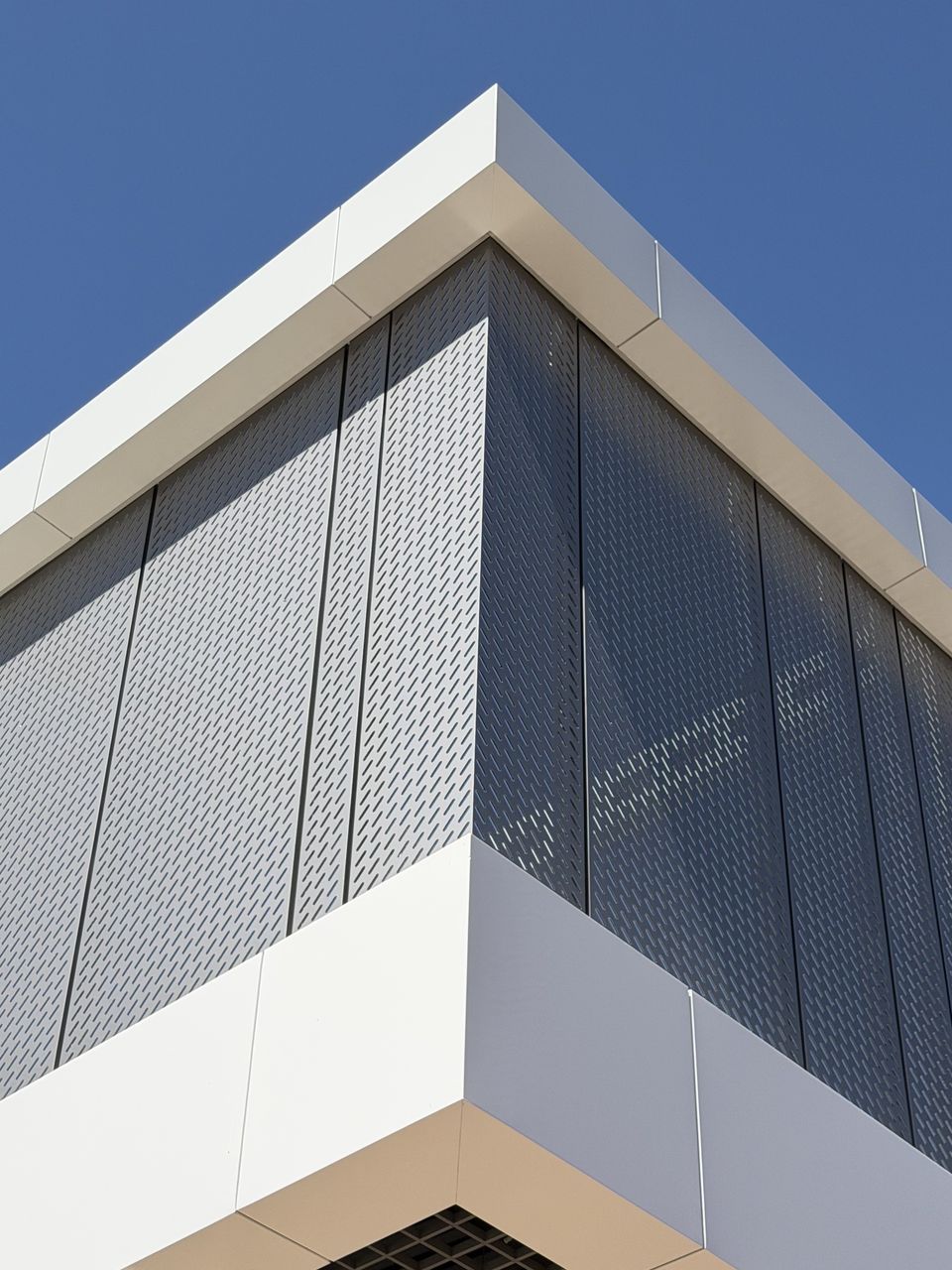

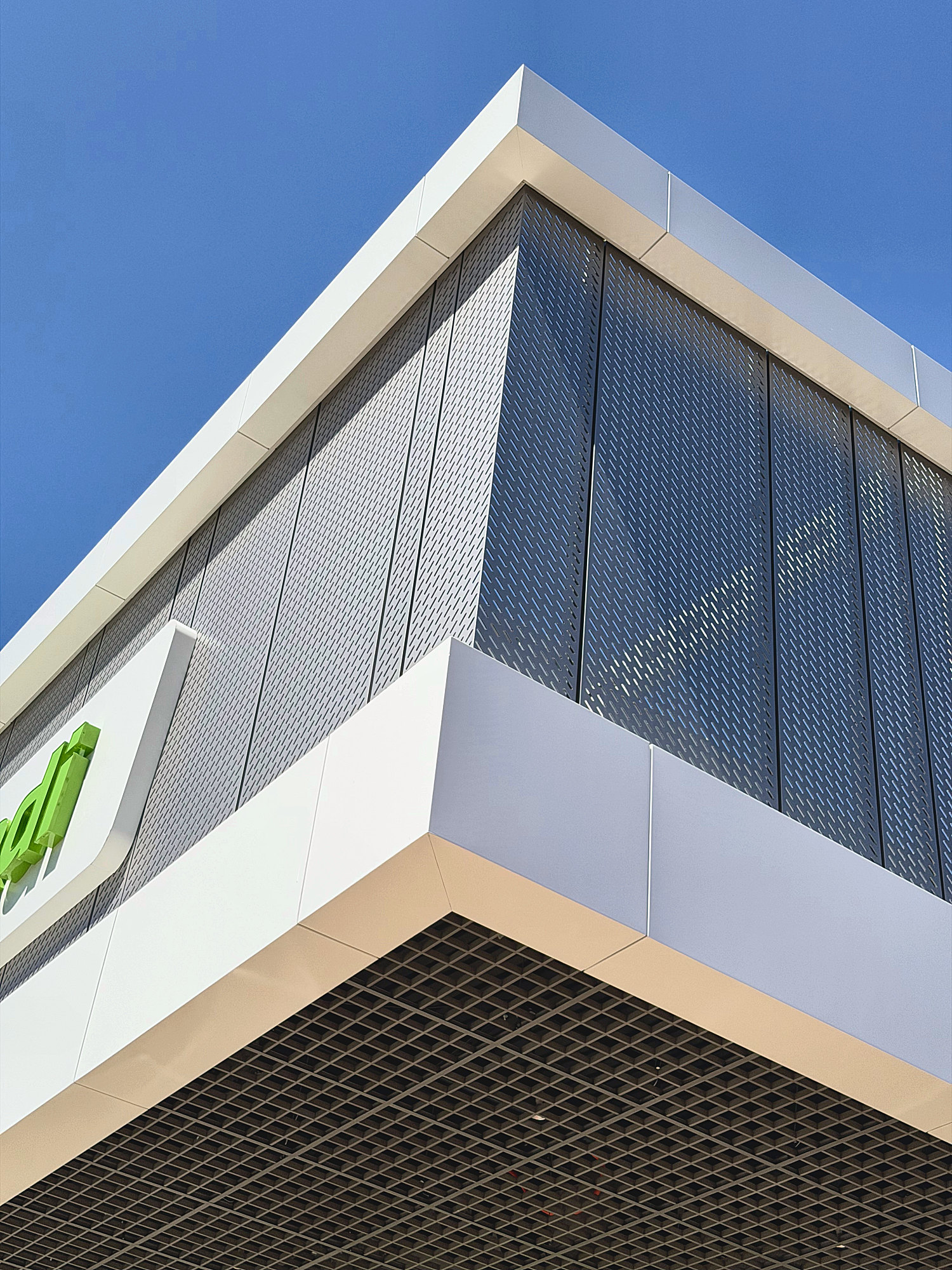

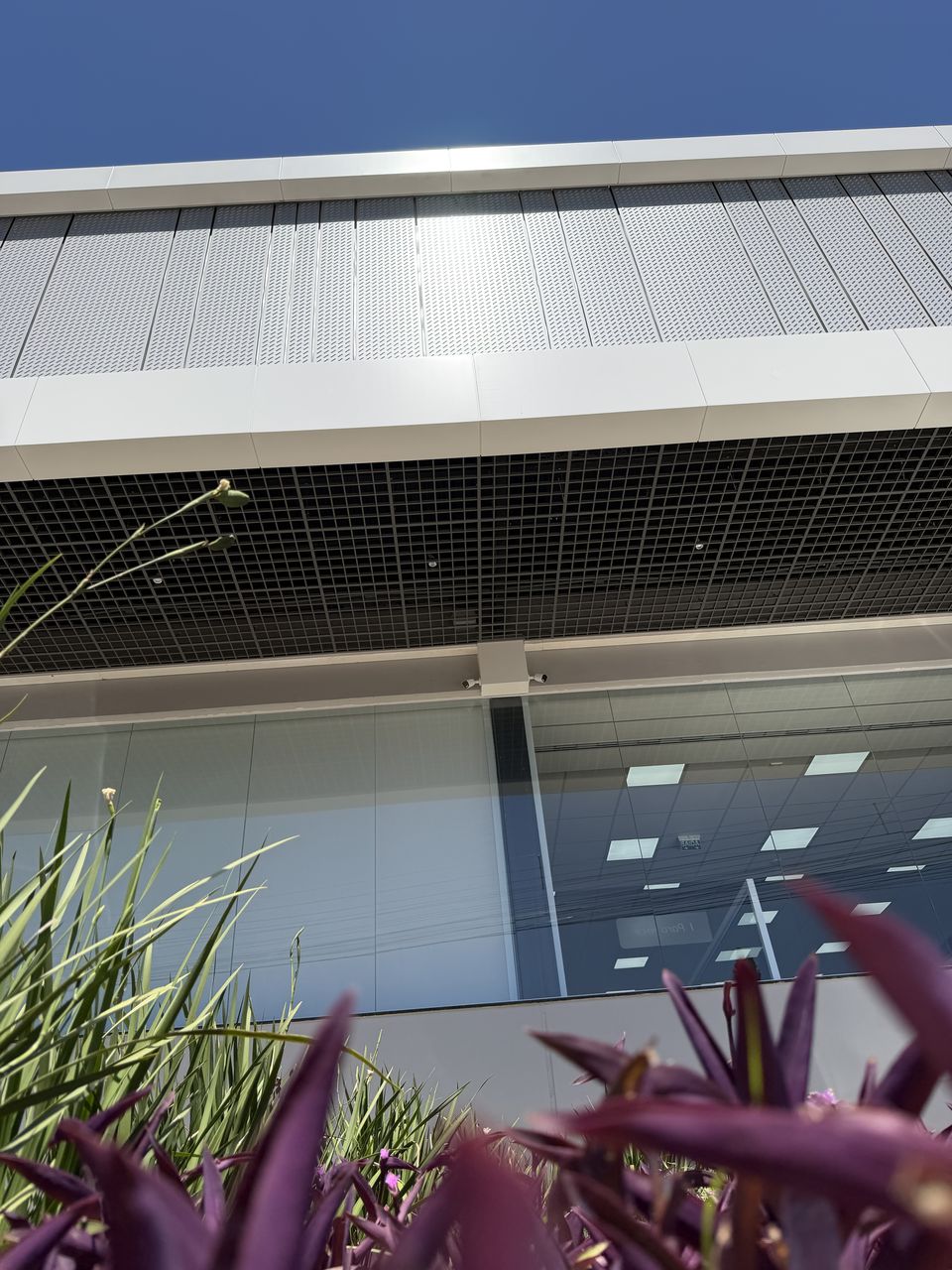

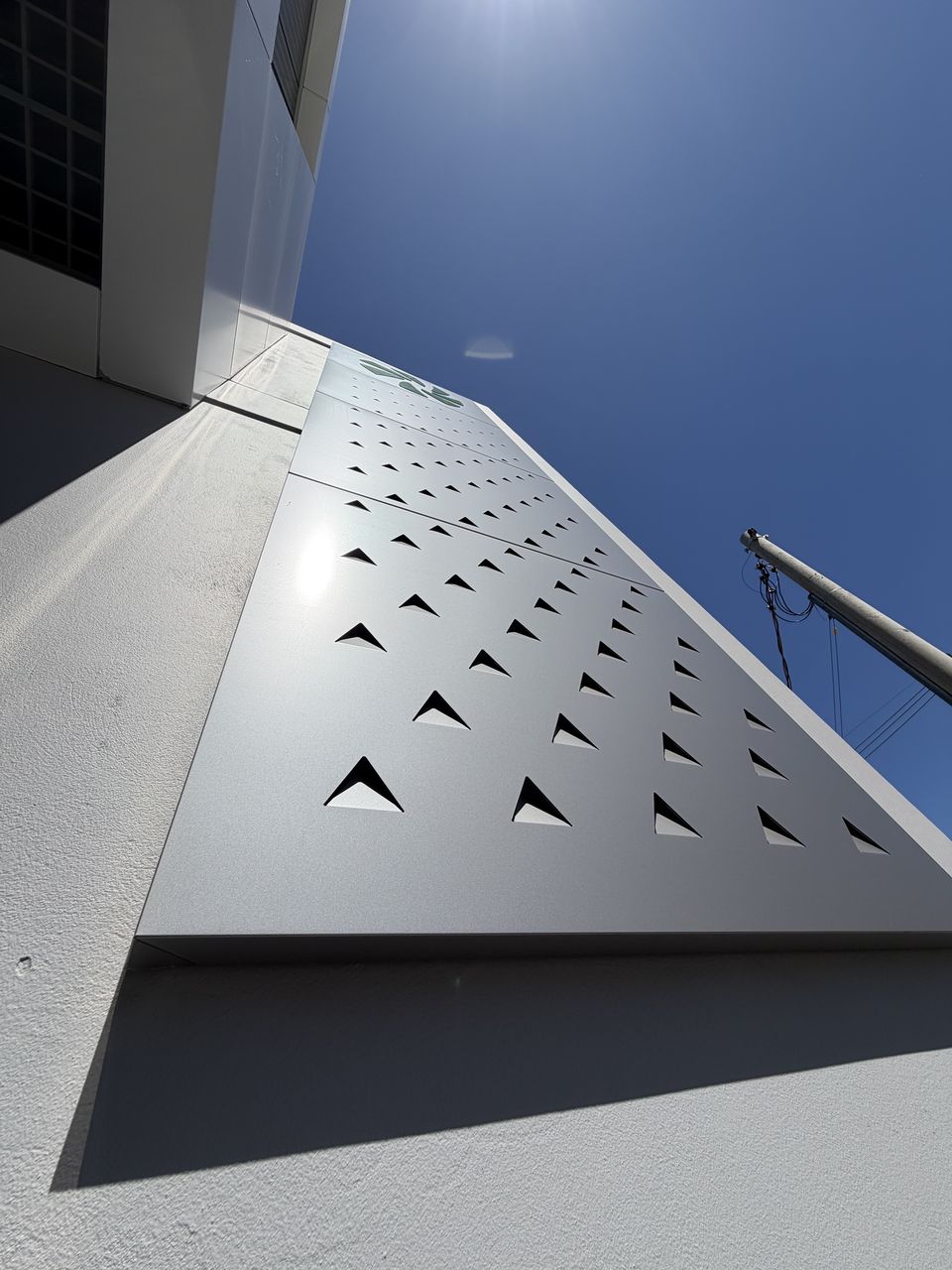

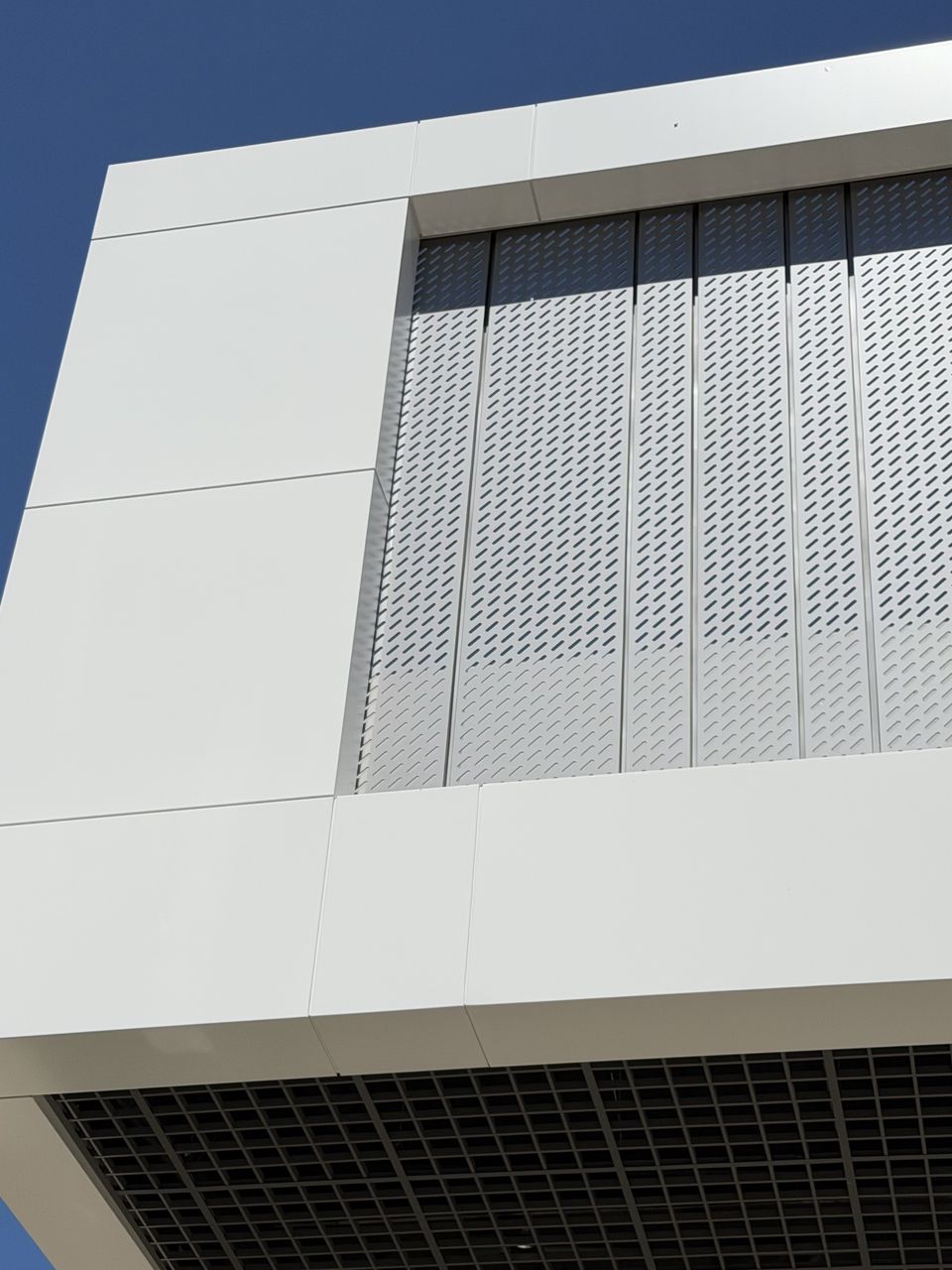

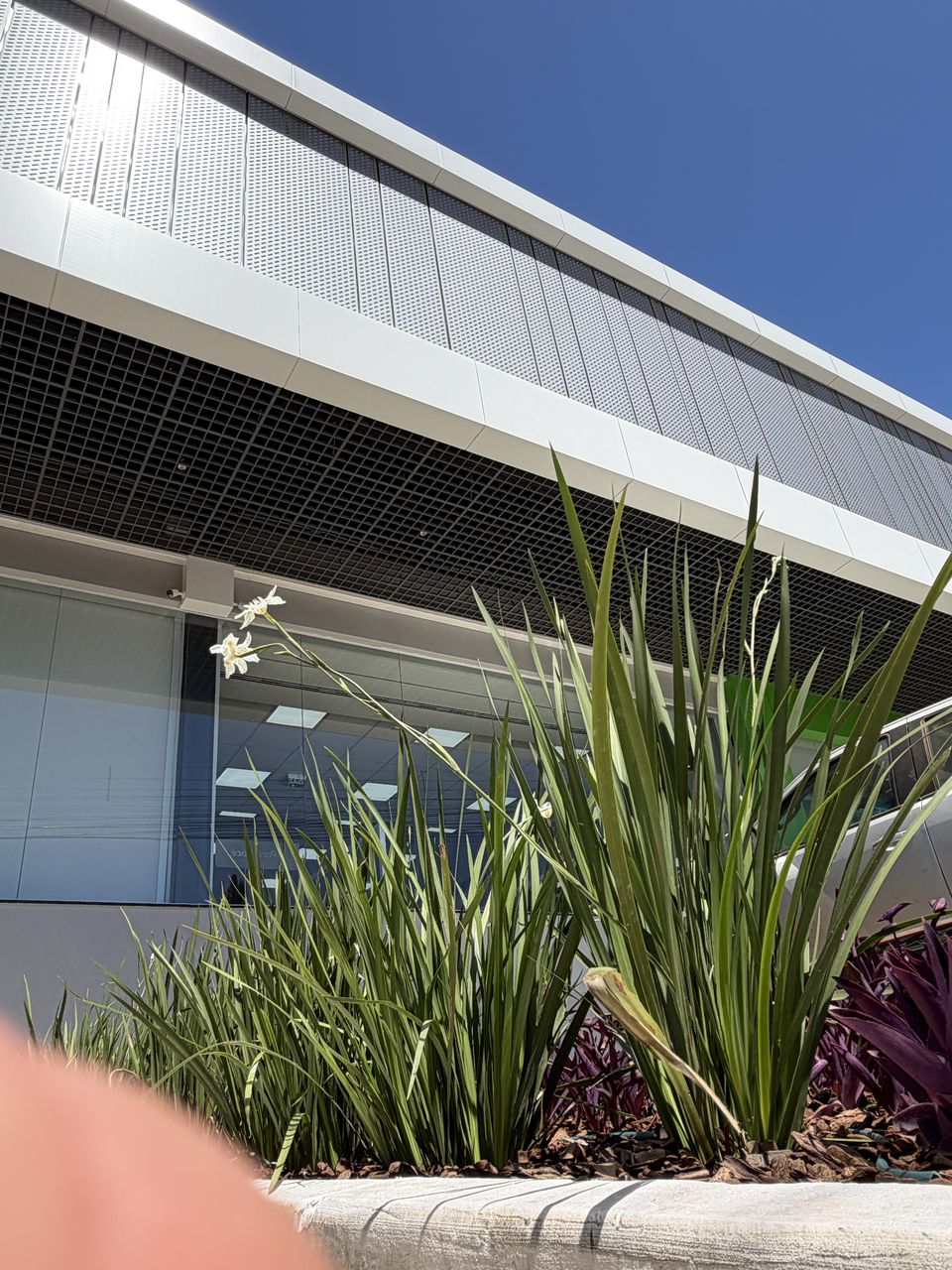

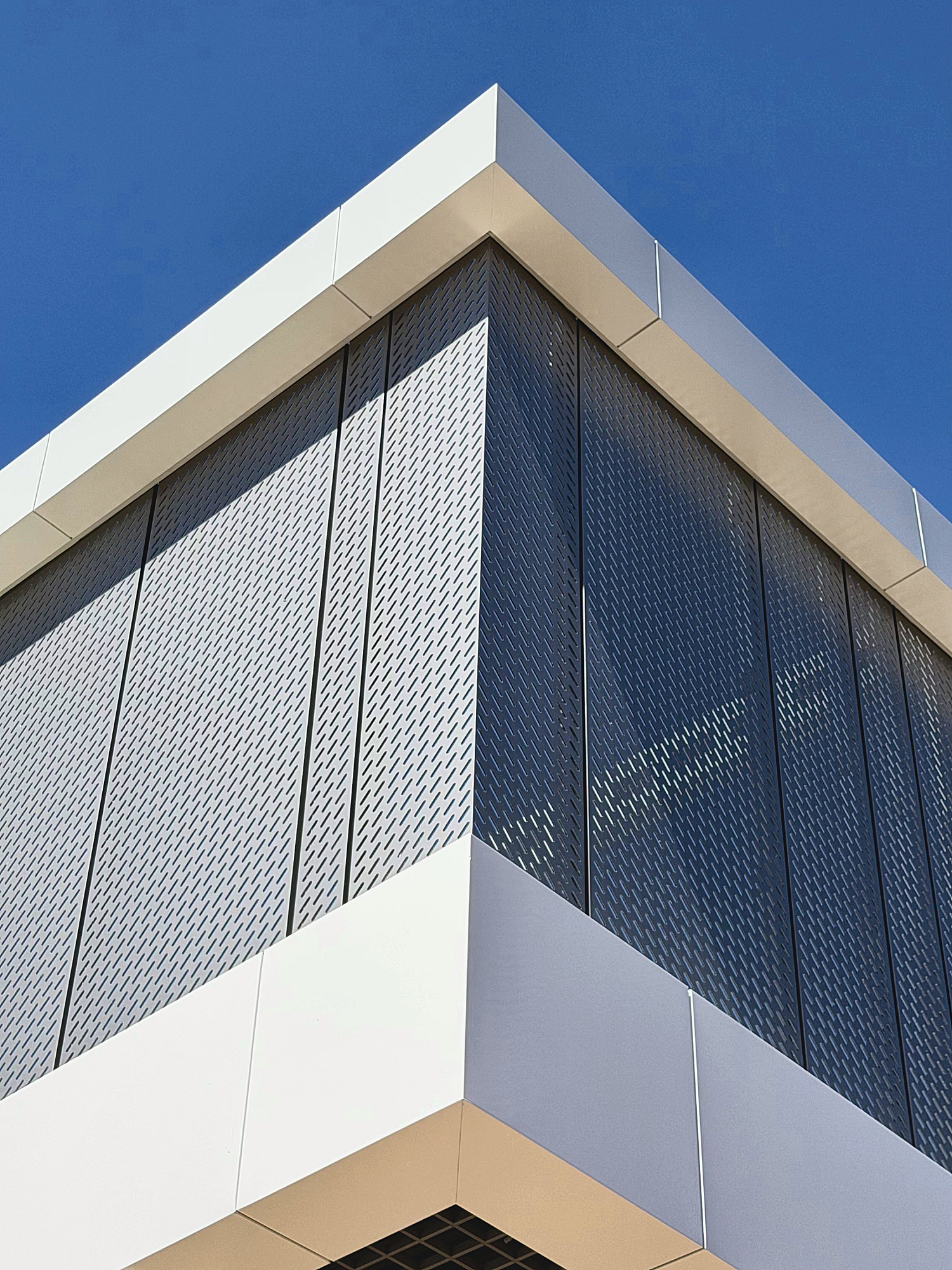

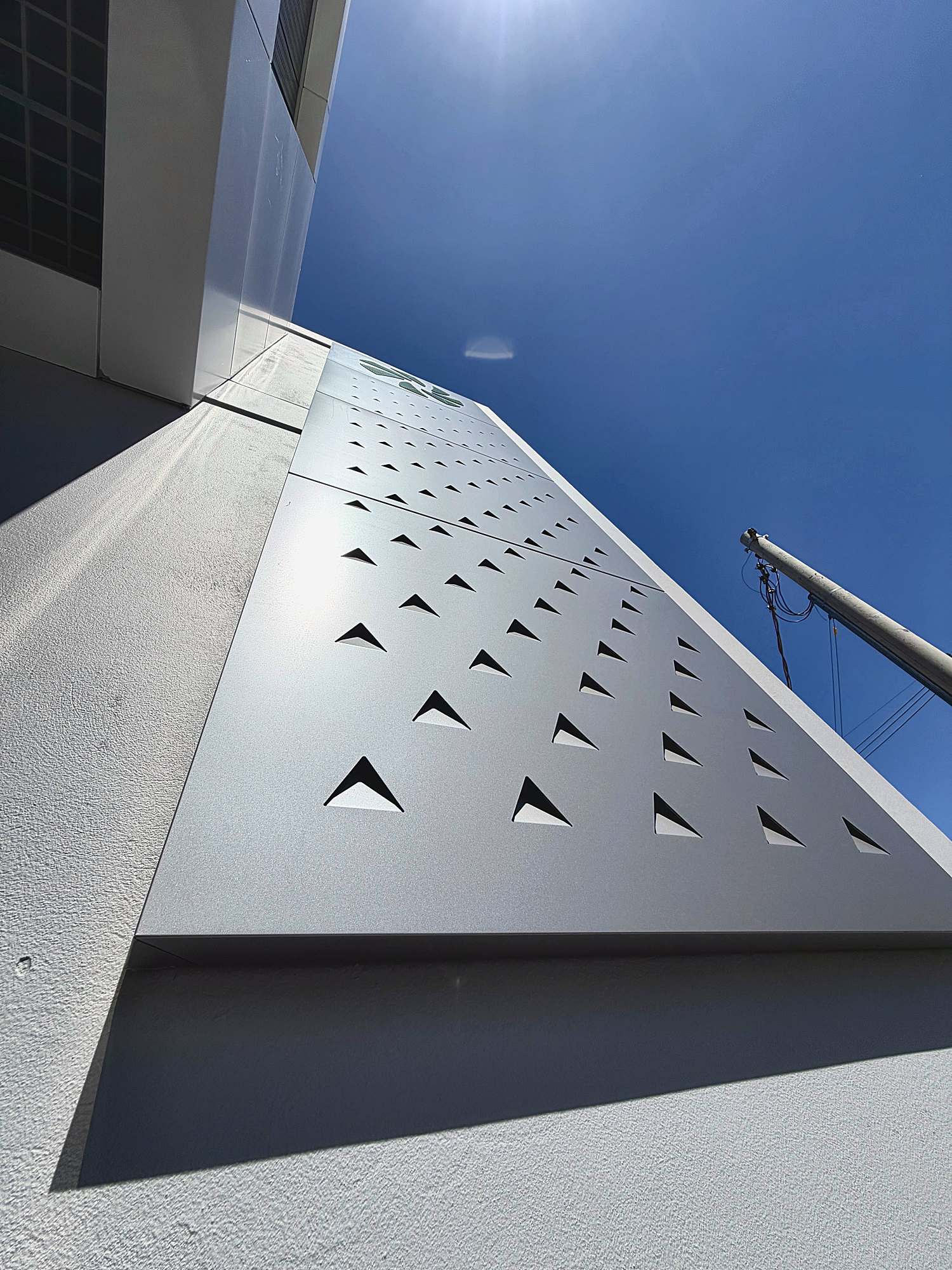

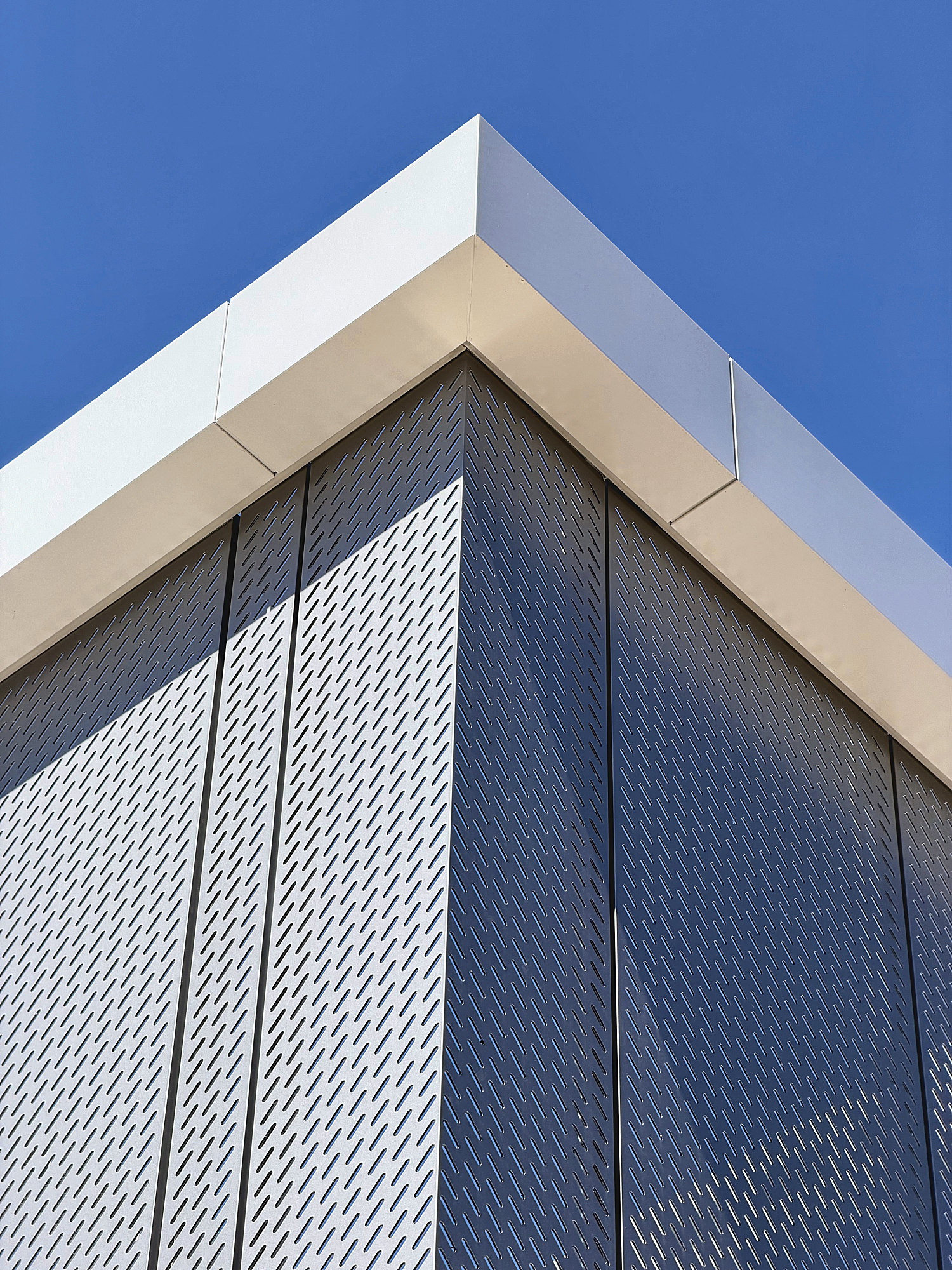

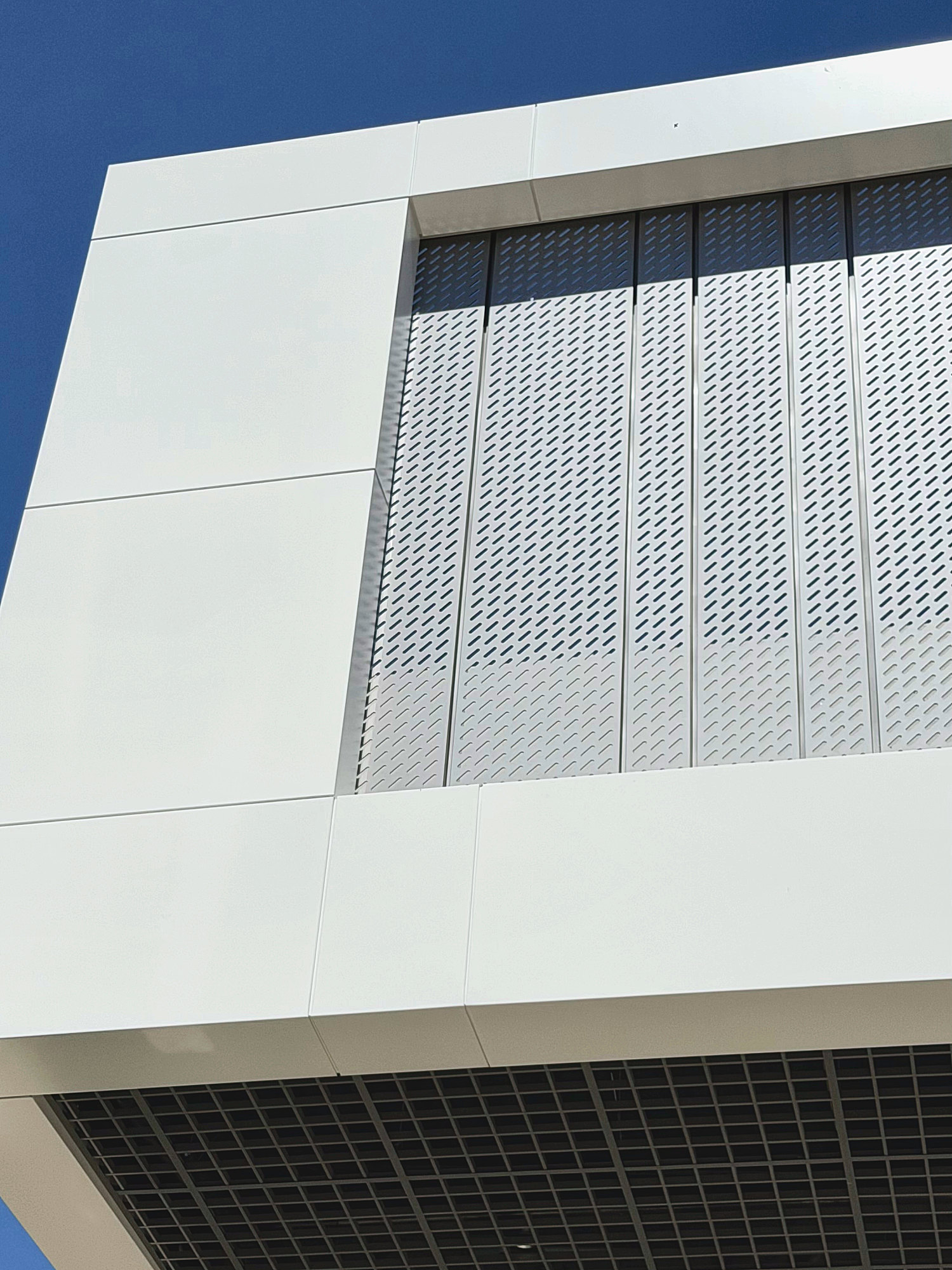

Perforated sheets in rice shape
Photography of the finished façade shown in the 3D model above.
Have a façade like this one?
Tell us about it. We reply in writing, usually within one business day.
Why KLZ
Fewer surprises between the drawing and the wall
Drawings you can approve
Every panel is drawn, sized and named. You review it first, then we cut it.
A sequence you can follow
Each piece has a name and a place, so deliveries and installation follow one plan.
One team accountable
From survey to installation, one company answers for the result.
351pieces, each named
3,120sq ft of ACM sheets
49aluminum frames
3elevations plus a soffit
Figures from the project shown above.
How we work
From the wall to the façade, in five steps
Laser level, tape and laptop: measured on site.
- MeasureWe record the real conditions on site and tie them to the drawings.
- DefineWe settle the system, the joints and the folded edges (returns) before drawing.
- DetailEach panel gets a name, a size and a fixing, drawn for your approval.
- MachineThe router cuts each panel and grooves its fold lines, straight from the drawing.
- InstallA named plan puts every piece in its place, in order.
Want this level of order on your project?
Send the basics. We answer with the next step.
More of our work

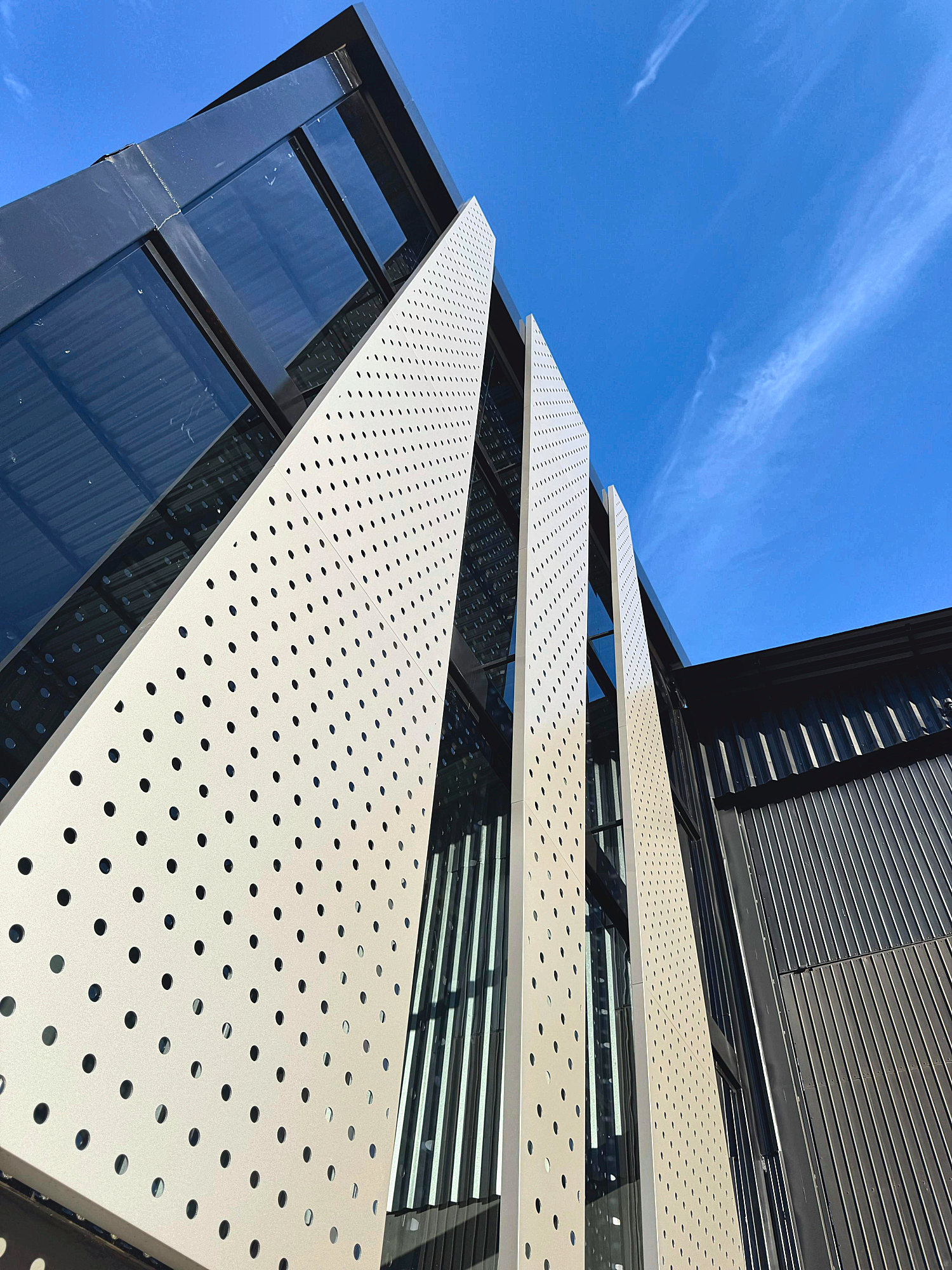

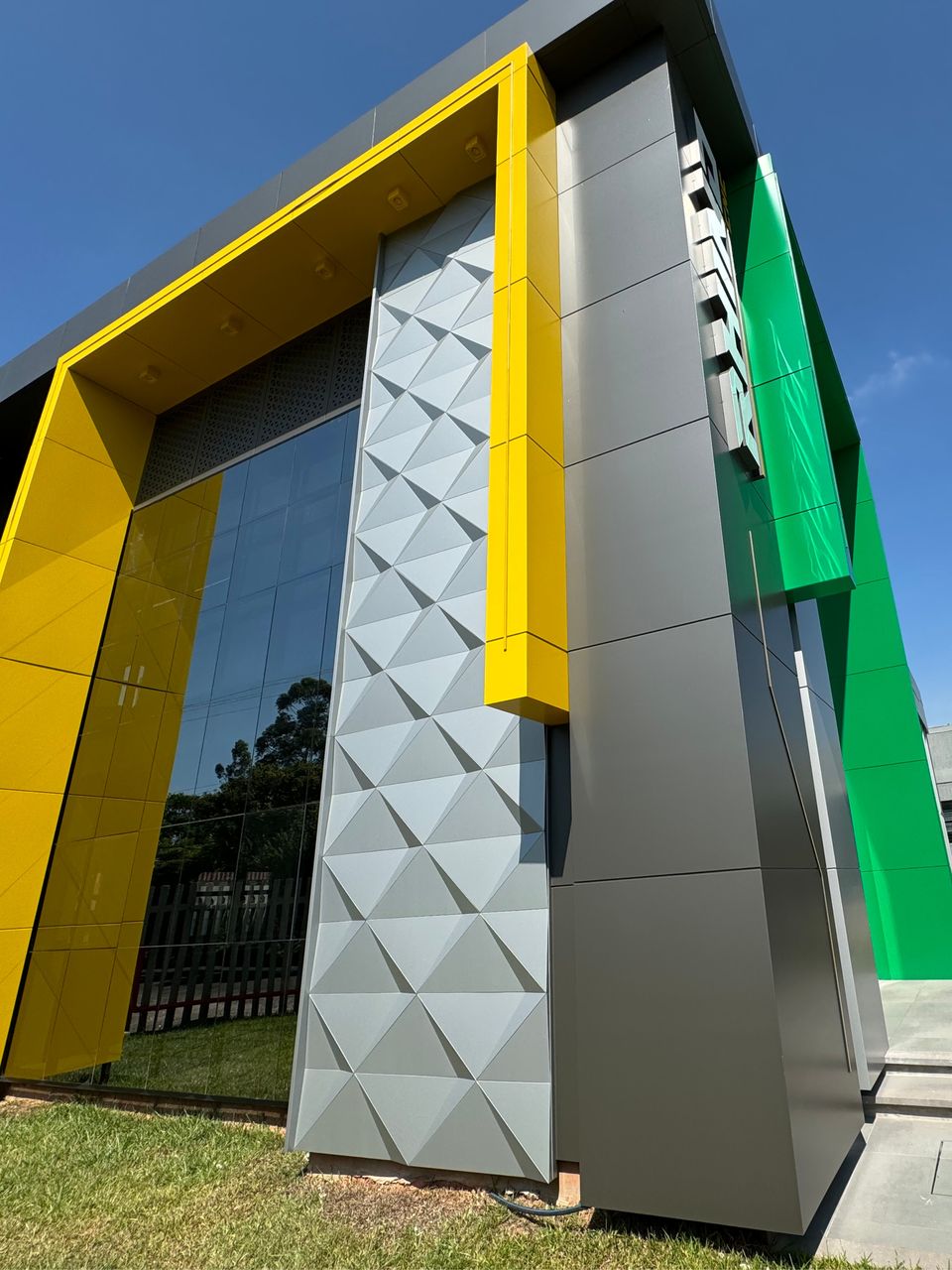

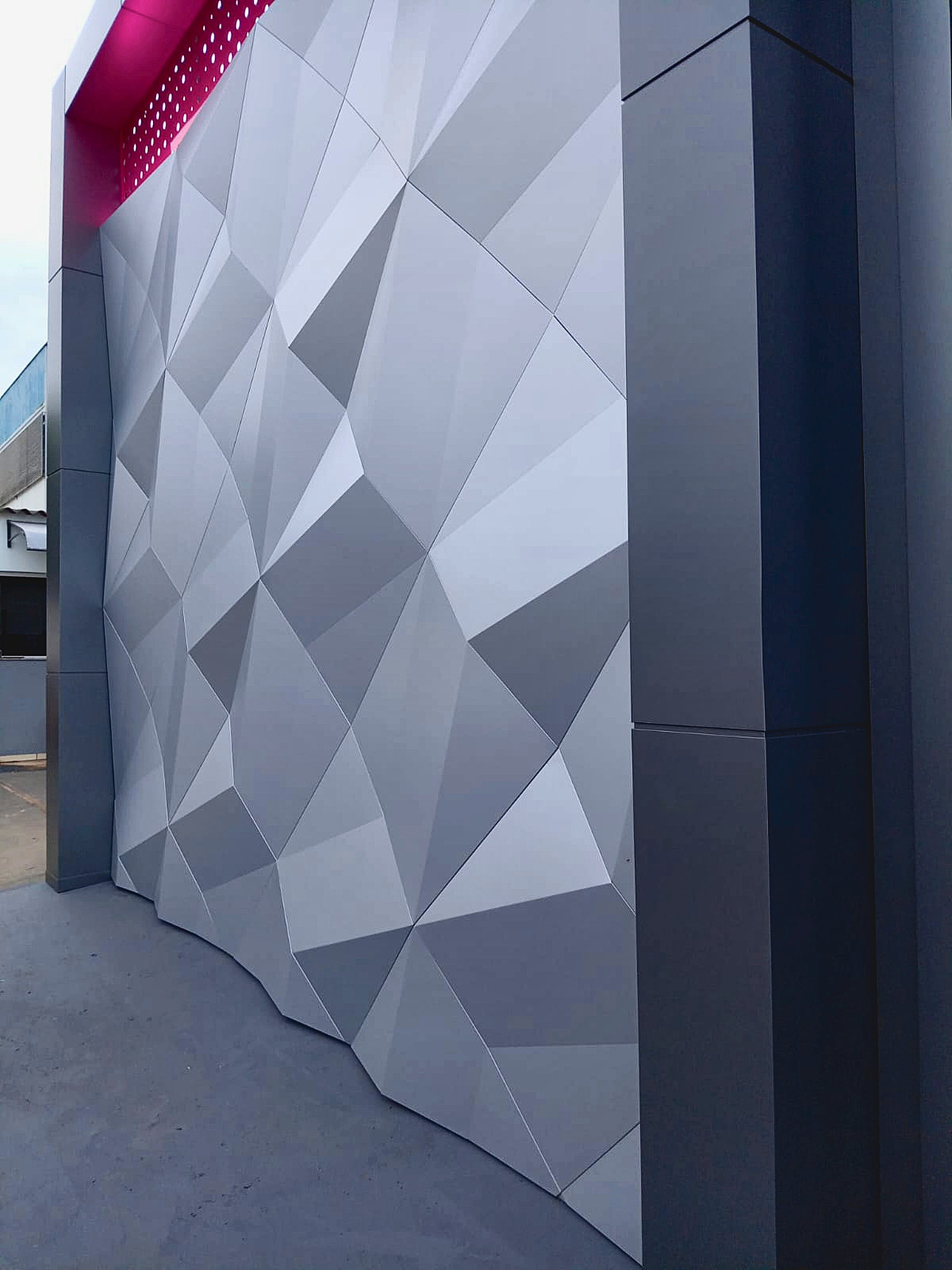

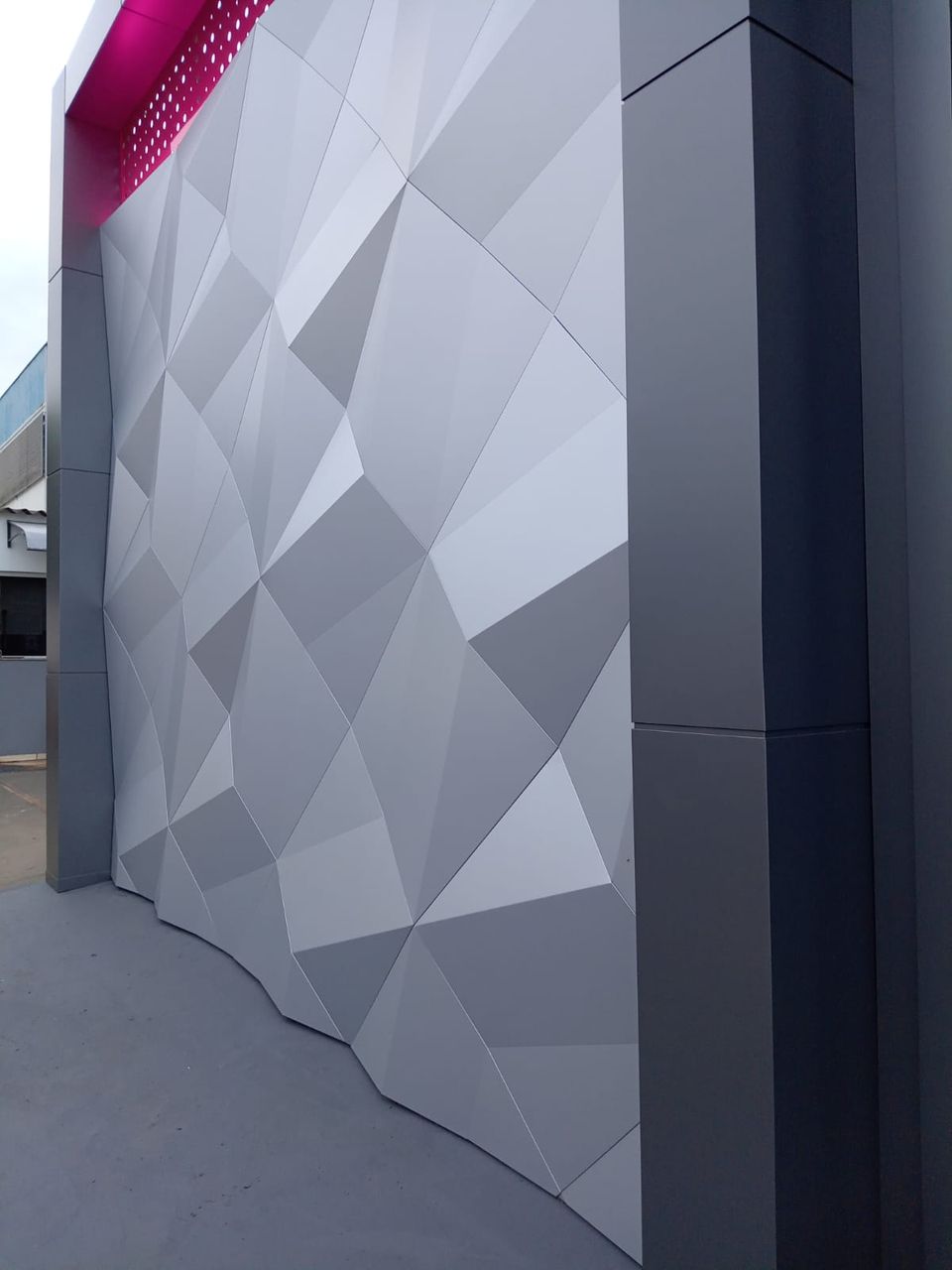

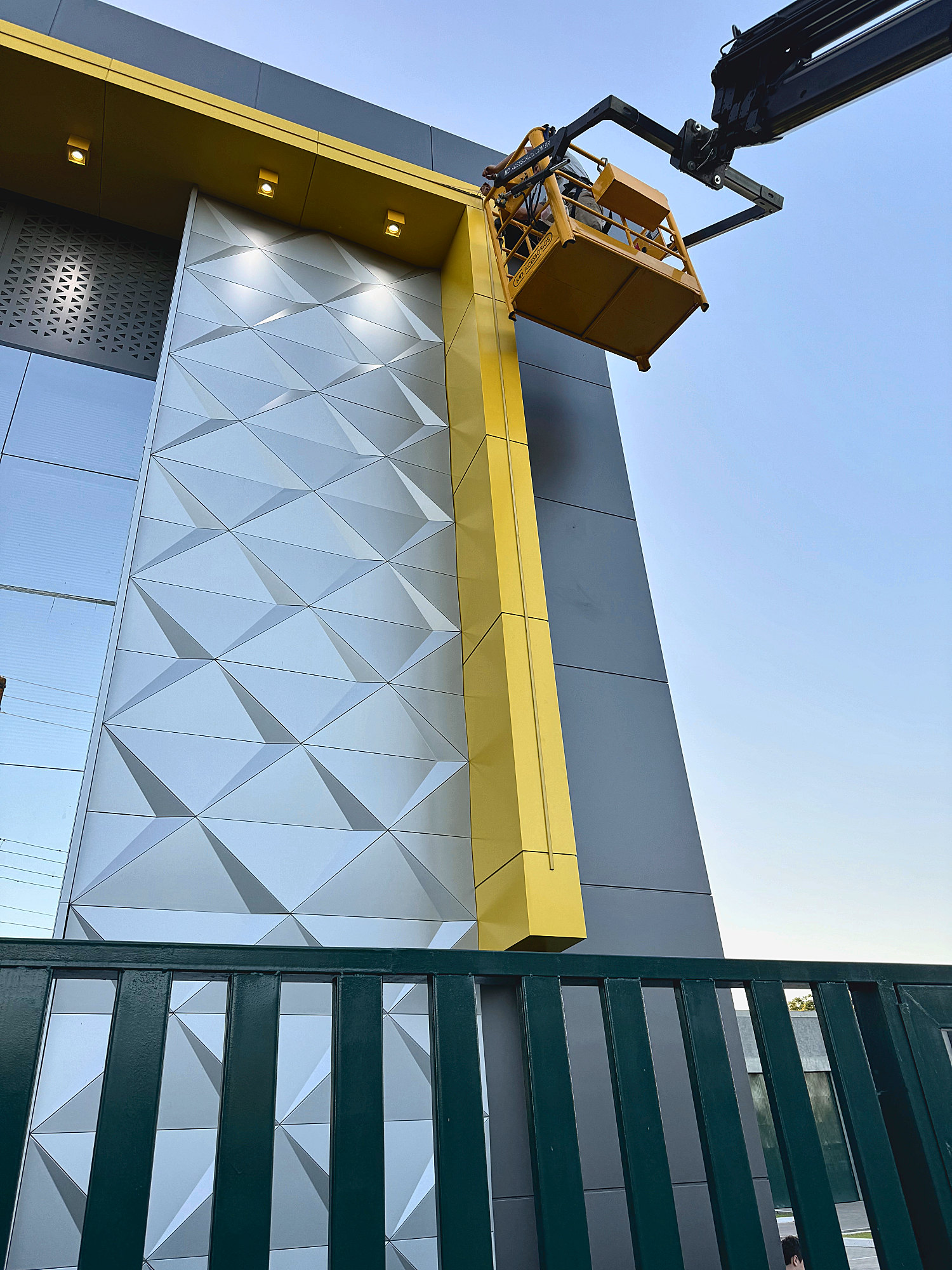

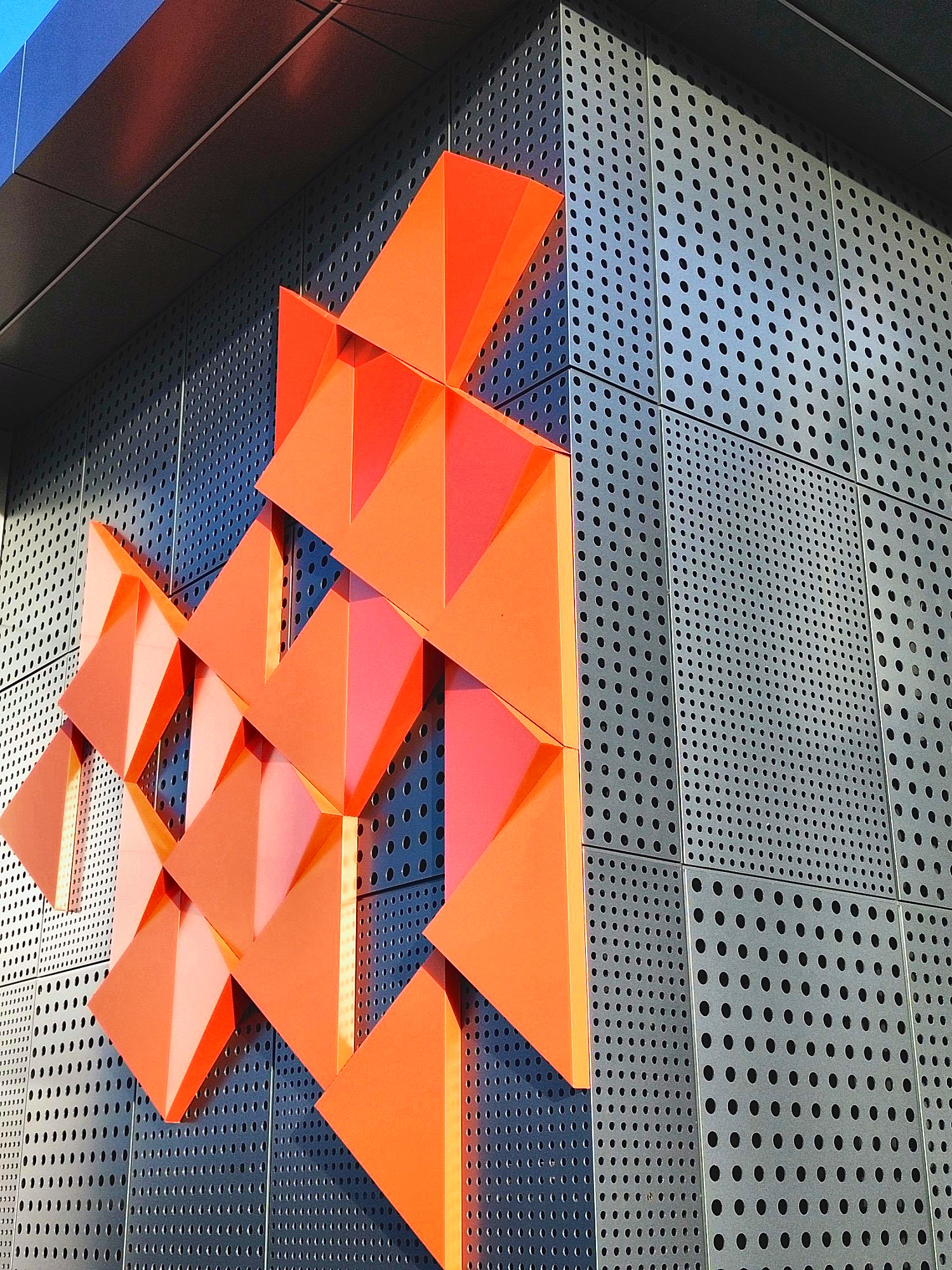

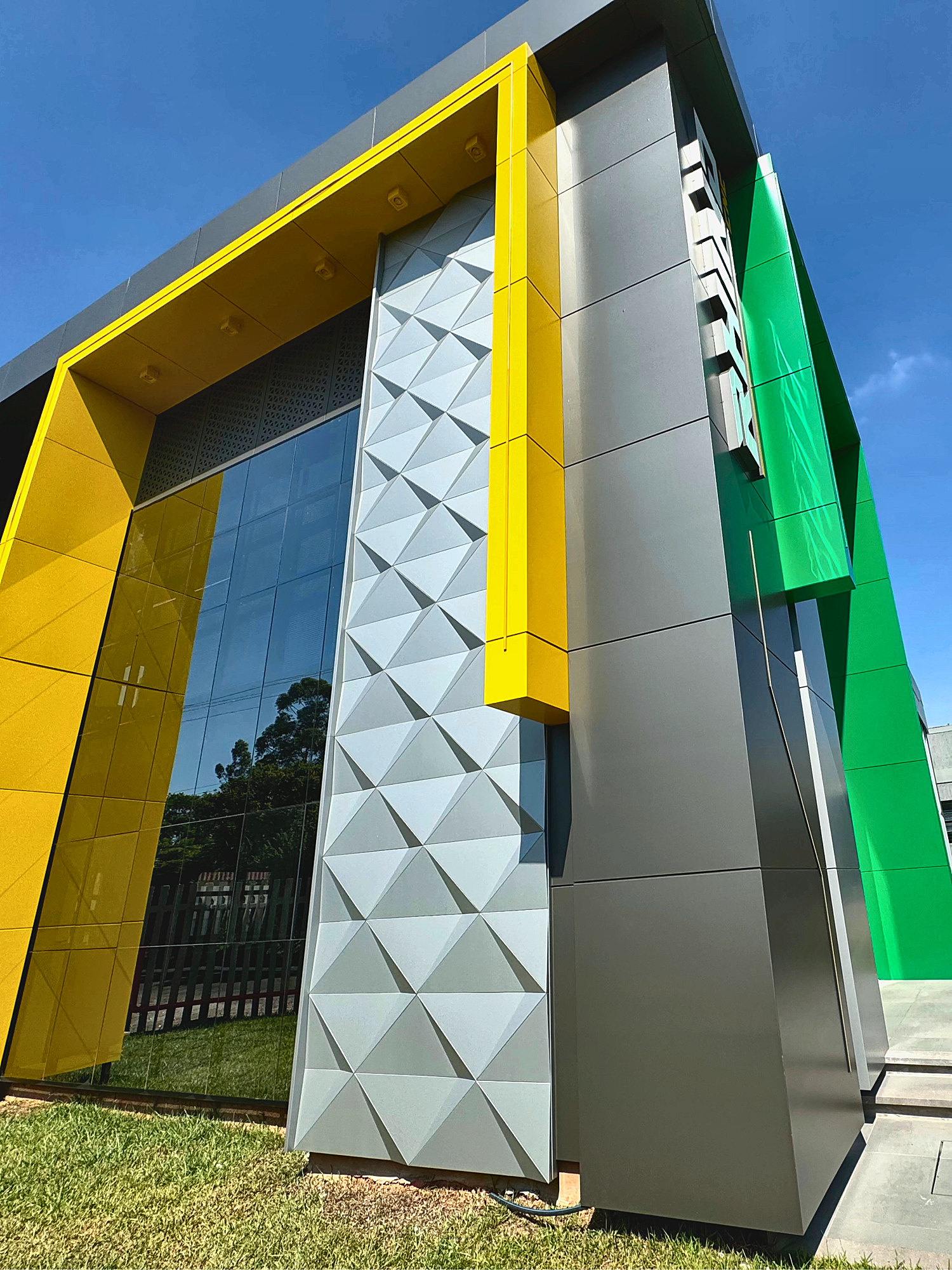

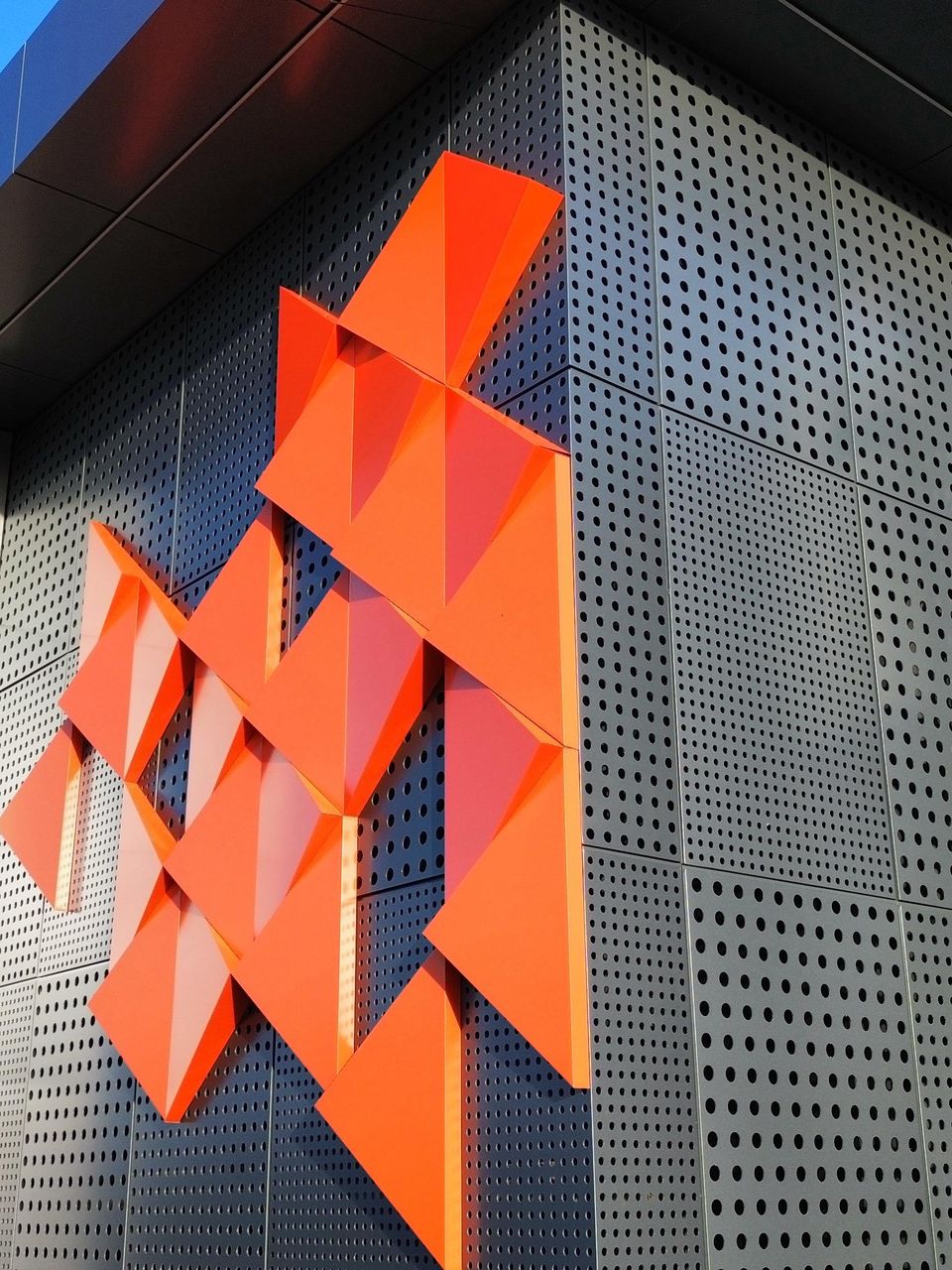

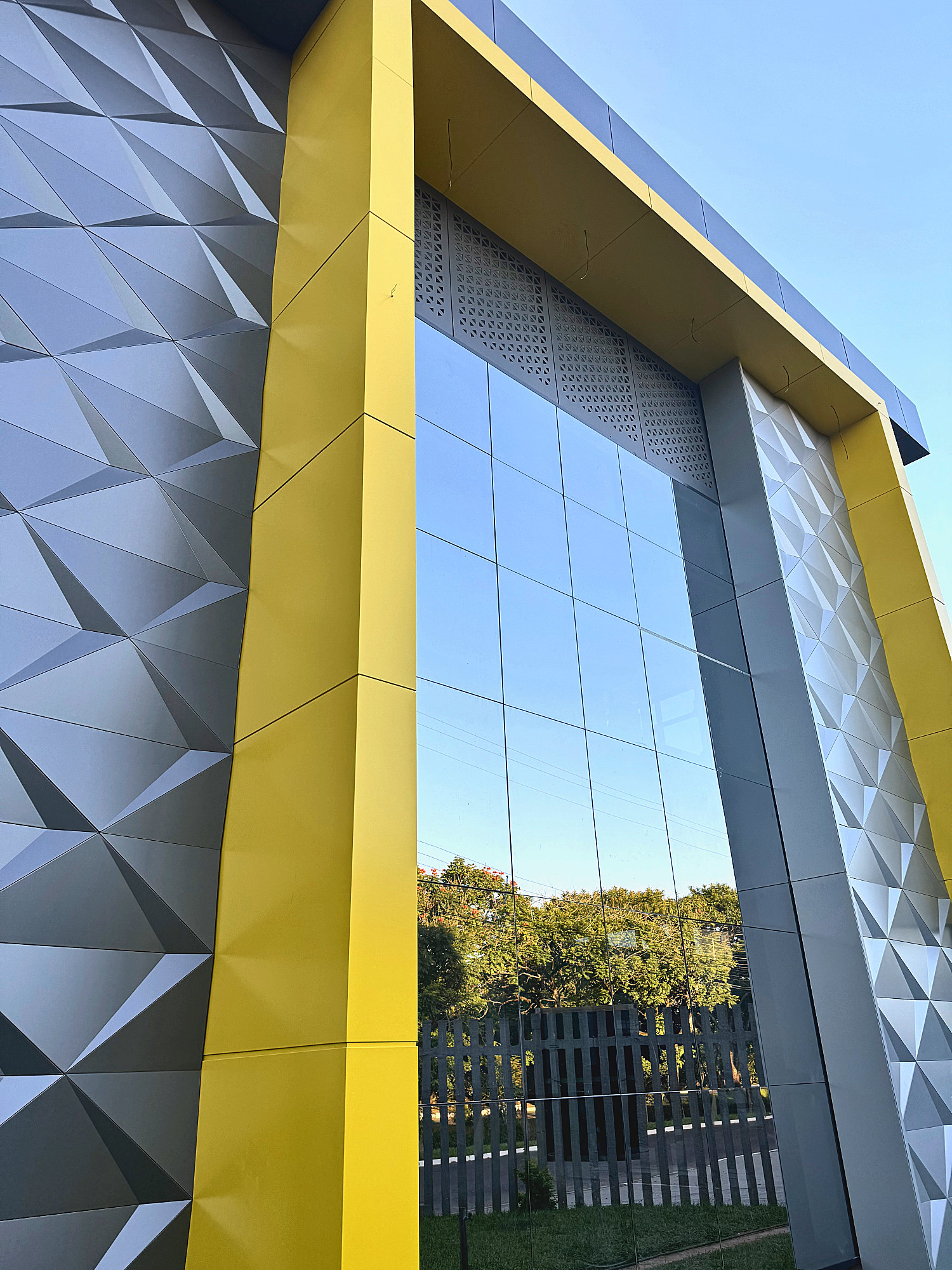

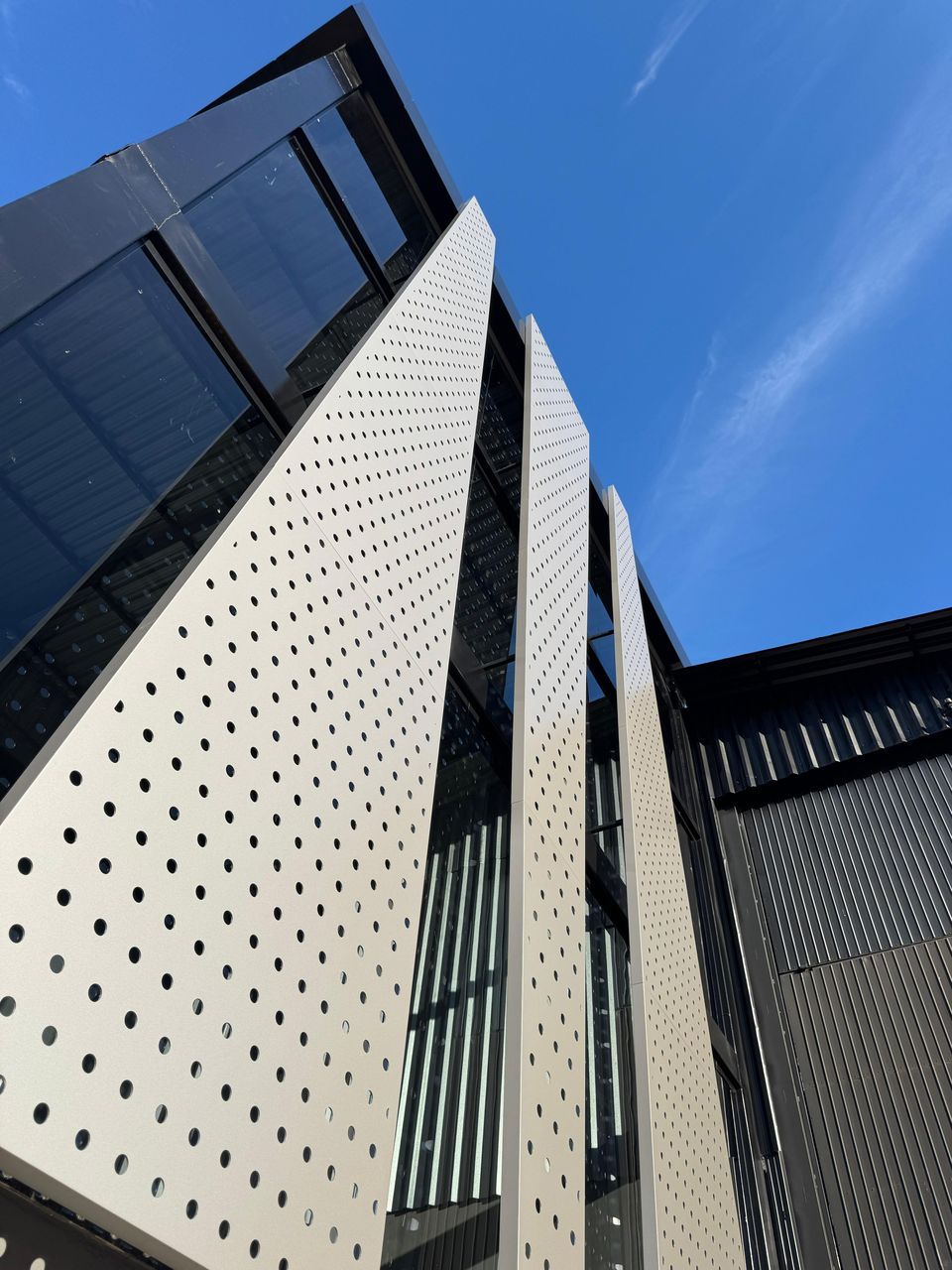

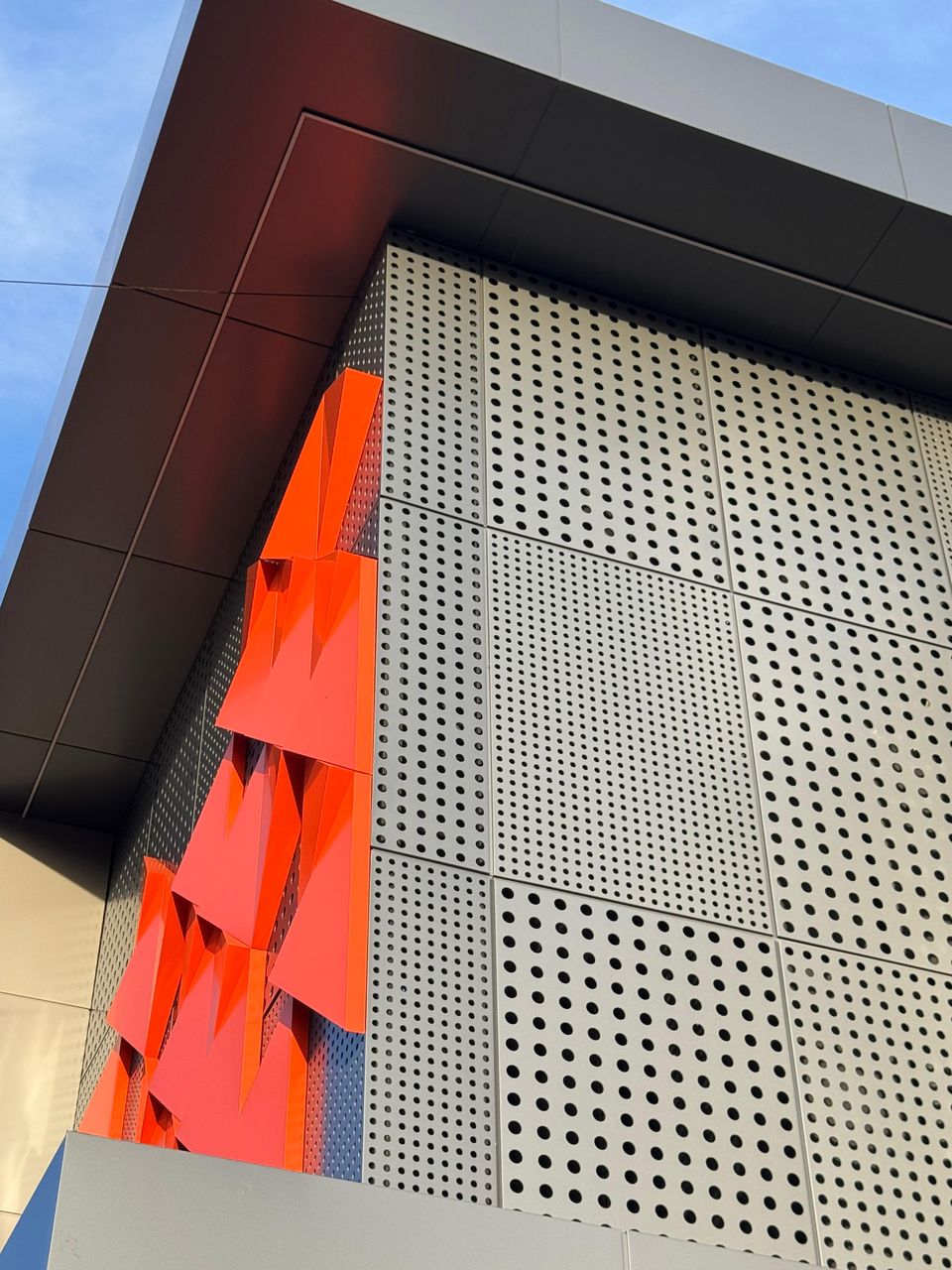

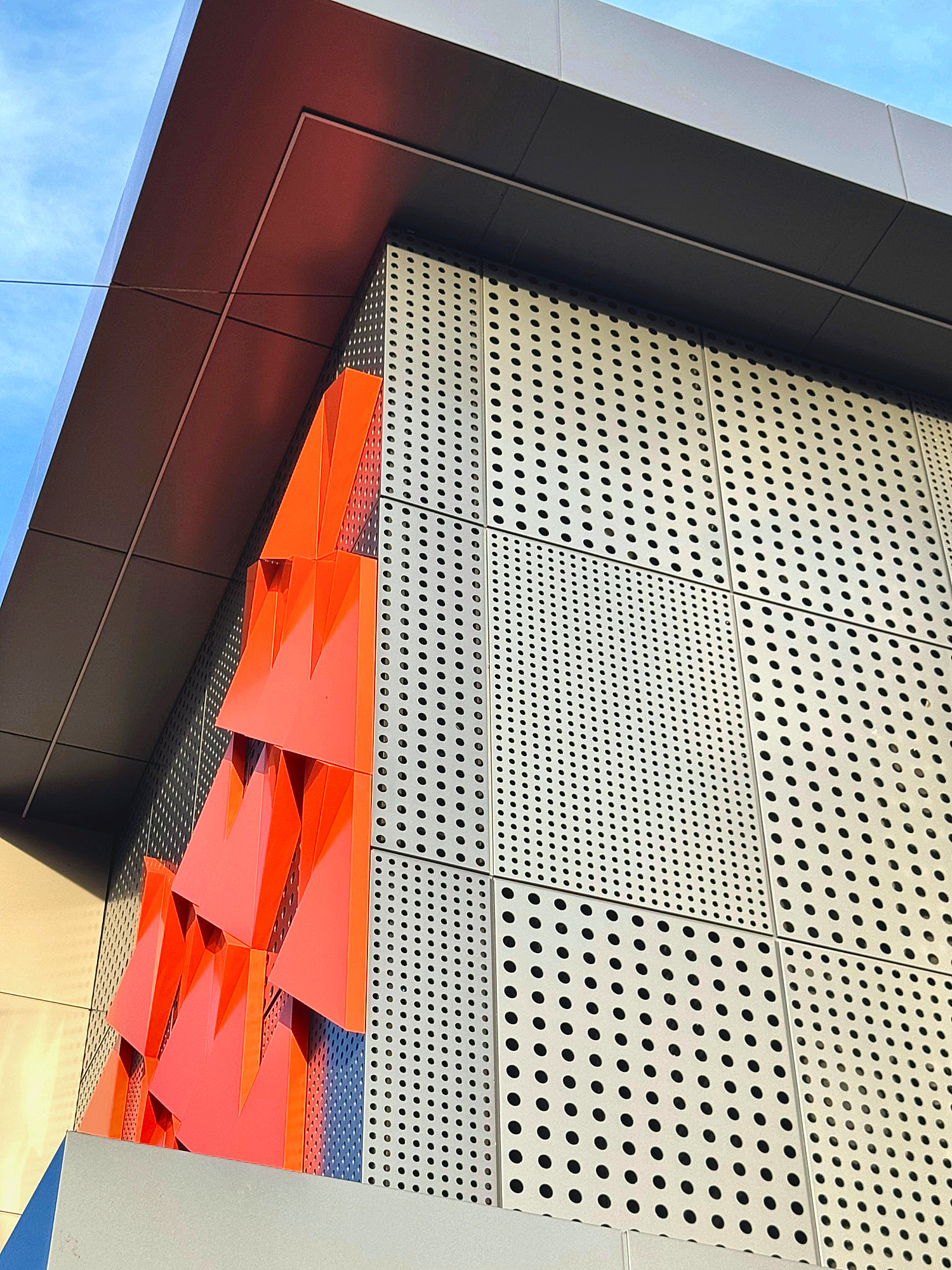

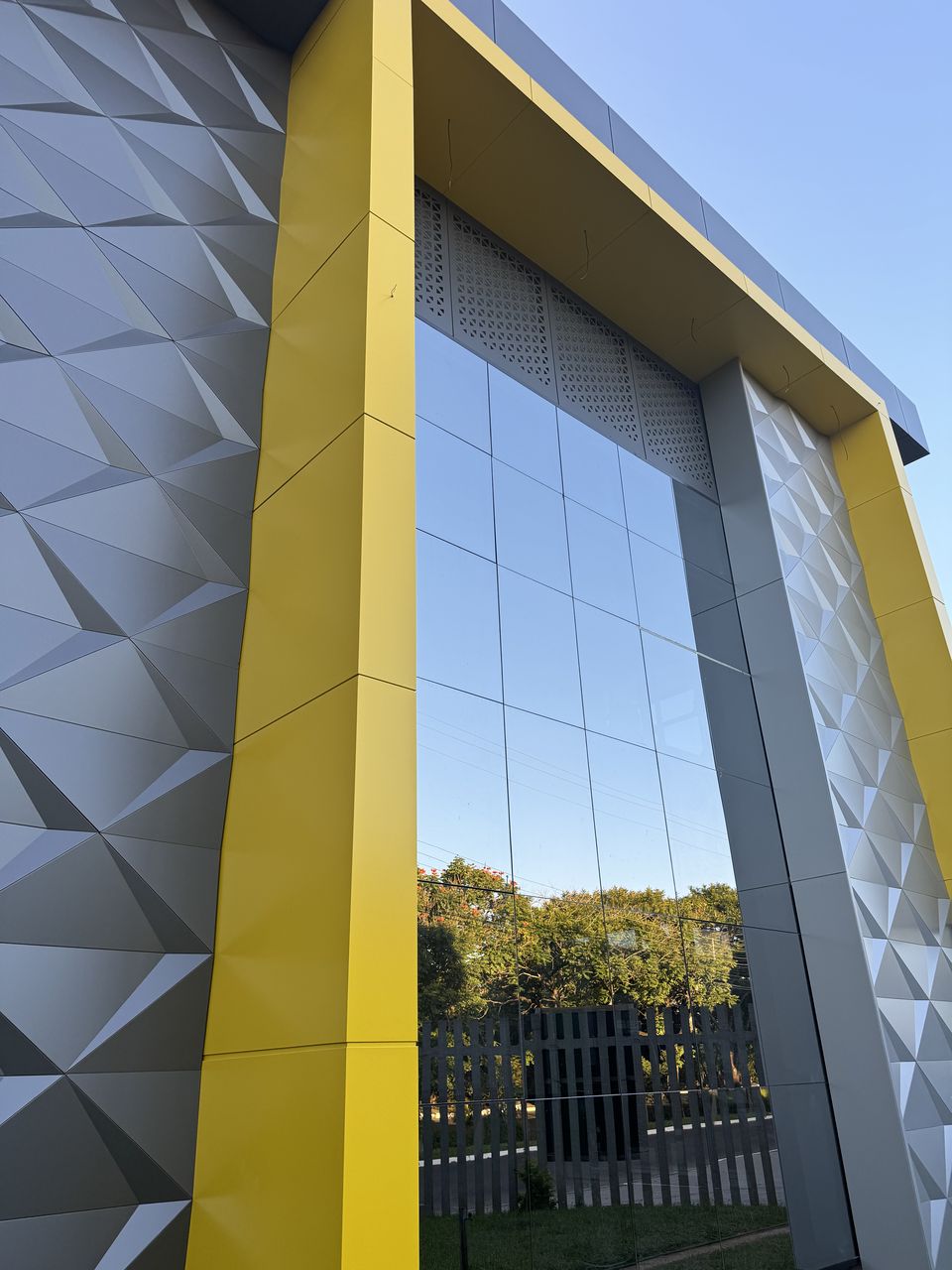

Folds, facets and perforations
Field photography from other KLZ façades.
Ways to engage
Choose how much we take on
Technical package
You install. We deliver everything ready to build: measured, drawn, machined and named.
Field measurement- System definition
- Shop drawings
- CNC machining
- Numbered installation plan
- Management and coordination
- Installation
Full delivery
We deliver the finished façade, with one team accountable.
- Field measurement
- System definition
- Shop drawings
- CNC machining
- Installation map
- Management and coordination
- Installation
One team accountable from survey to installation.
Who we work with
Built around your role
One accountable team, from survey to installation.
- Panel schedule tied to your sequence
- Single point of responsibility
- Questions answered with drawings and field data
Your design intent, resolved to the joint.
- Shop drawings ready for review and approval
- Joints, returns and fixing logic documented
- Field conditions reflected in the model
A clear plan for every panel.
- Scope stated up front
- Technical package or full delivery
- Progress you can read piece by piece
Projects
Our work
Perforated sheets in rice shape
ACM façade
ACM façade with white sheets, perforated screens and a green accent: 133 sheets, 72 perforated sheets and 146 filler strips over an aluminum structure. Open the 3D model above to see it piece by piece, from the building to the final sheet, and the photos of the finished façade.
FAQ
Questions we hear first
What do you need to give me a proposal?
The project location, an approximate area, the cladding type and the stage you are in. Drawings or photos help, but they are not required to start.
What is the difference between the two scopes?
A technical package is everything your installer needs: measurement, system definition, shop drawings, CNC-machined panels and a named installation plan. Full delivery adds installation, with one team accountable from survey to finished façade.
Which materials do you work with?
ACM and other metal panel systems. Tell us what you are considering and we will say what fits.
Where are you based, and where do you work?
We are in Pittsfield, Massachusetts. Send the project location and we will confirm whether and how we can cover it.
How do you communicate?
In writing, by email or text message. That keeps every decision on record, which is what a façade project needs.
Can I review the drawings before anything is cut?
Yes. Shop drawings are issued for your review and approval before fabrication starts.
What do the technical terms mean?
Return: the edge of a panel folded back toward the wall. Shop drawings: the detailed drawings of every panel. CNC / V-groove: a router cuts the sheet and grooves its fold lines so it folds cleanly. Filler strip: a narrow ACM piece behind the visible sheets. Sub-frame: the aluminum structure that carries the panels.
